Product Details:
|
| Product Name: | FOB LED STRIP | Power: | 5W 10W 15W |
|---|---|---|---|
| Voltage: | 12V/24V | CRI: | 90 |
| Lumens: | 110-120LM/W | Color Temperature: | 2700K/3000K/4000K/6500K |
| Warranty: | 3 Years | Life Span: | 50000 Hours |
| Certificate: | CE ROHS LM-80 | Working Temperature(℃): | -20 - 50 |
| Application: | Home/Hotel/Decorative Lighting | Color: | White/ Red/ Blue/ Green/Yellow/ Purple |
| High Light: | 120LM/W Flexible Car Led Strip,2700K Flexible Car Led Strip,10W Switchback Headlight LED Strip |
||

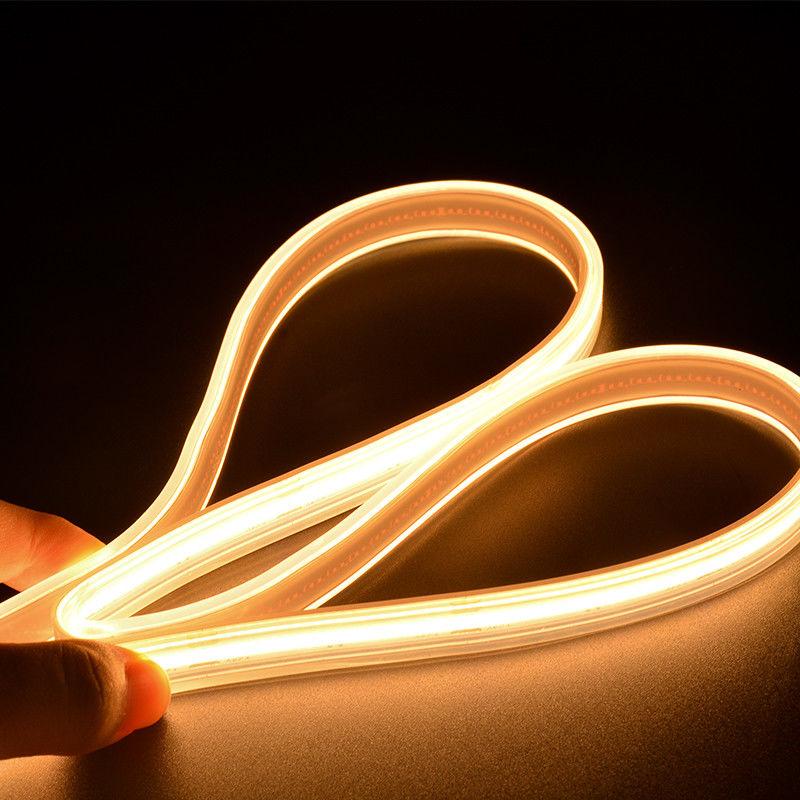

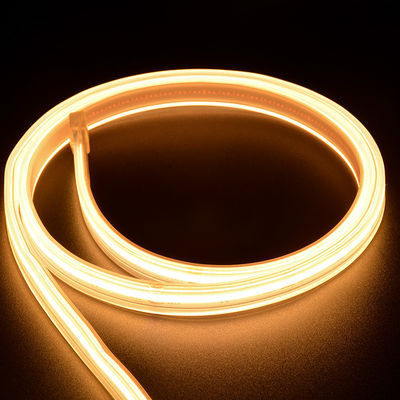

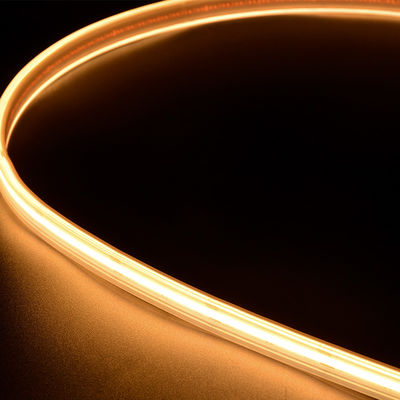

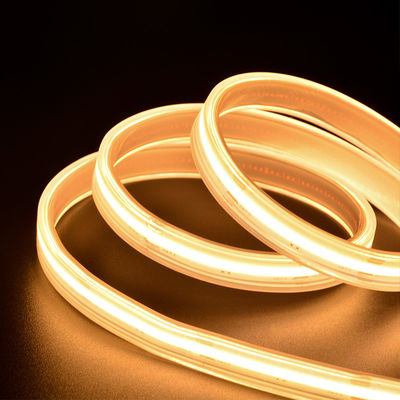

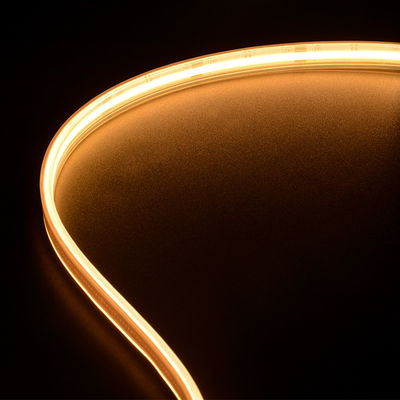

Red Amber Flexible Car LED Strip Light for Switchback Headlight and Turn Signal Light Tube
Specification
1. Flexible soft cob led strip light: can be bent, twisted easy to make any shapes, the tube also can be cut and resealed, you can DIY the shape and cut it to any length you want to fit retrofit needs
2. Universally fit for DC12V/24V auto vehicle: Car, SUV, Vans, Truck, RV, Motorcycle, Scooter, Trailer etc.
Product Description
Product specification
| Company abbreviation |
Product size (mm) |
(V) |
Series-parallel | Half a meter powe (W) | Emitting color | CRI |
Photosynthetic efficiency level (lm/w) |
| XC | 08 | 24 | 0830 | P2 | 27 | 90 | B |
| (xuancai) | 500*08mm | DC24V |
08-C 30-B |
2.5W | 2700K | ＞90 | 105-110 |
| XC | 08 | 24 | 0830 | P2 | 30 | 90 | C |
| (xuancai) | 500*08mm | DC24V |
08-C 30-B |
2.5W | 3000K | ＞90 | 110-115 |
| XC | 08 | 24 | 0830 | P2 | 40 | 90 | D |
| (xuancai) | 500*08mm | DC24V |
08-C 30-B |
2.5W | 4000K | ＞90 | 125-130 |
| XC | 08 | 24 | 0830 | P2 | 65 | 90 | E |
| (xuancai) | 500*08mm | DC24V |
08-C 30-B |
2.5W | 6500K | ＞90 | 130-135 |
Reliability test standards
| (A pilot project) | (Number of test) | (Test conditions) | (Decision criteria) | (Test Vequipment) |
| Cold and hot shock | 10pcs | -40℃/30min -- 120℃/30min, one Cycle per hour, 100 cycles in total. | No glue crack/dead light | Cold and heat shock chamber |
| The normal temperature aging | 10pcs | Ambient temperature 25±5℃, rated voltage /1000hr, 168H to test the photoelectric parameters once. |
1.Droop 10% or less 2.No glue crack/dead light |
Normal temperature aging block |
| High temperature and high humidity | 10pcs | Ambient temperature 85±5℃, rated voltage /1000hr, 168H to test the photoelectric parameters once. |
1.Droop 10% or less 2.No glue crack/dead light |
High temperature and high humidity aging tank |
Application
Car Lighting
Advantages of COB STRIP LIGHTS
HOW TO INSTALL
Customers feedback
1. These are much better when used as under cabinet lighting than the standard chip style. Especially with reflective countertops. It's much more uniform and clean looking in the reflection. I install many strips through my electrical business. These were very great.
2. My customer is so happy with this lighting. The leds are bright and dimmable and a great white shade., not blue or amber. Most importantly they are a solid light, no dots. Looks very high end. This is the only led strip lighting I will install from now on.
3. I have used a ton of other products from skye and this is by far my favorite. It looks awesome without all the individual diodes. I used a 24v transformer and made sure the wattage was rated higher that the 3w per ft I planned to use. These bend much tighter and are more flexible than other brands if used as well. I combine these with aluminum channels I buy from amazon to make them look like a fixture, including inside and outside corners.
Awesome light
4. Great tape lighting...such an upgrade from the "dotted" style. Would HIGHLY recommend this product for under cabinet, under counter, around mirrors in bathrooms, etc.
5. I normally don't write reports but I was surprised for good about this product. Unbelieved brightness. Consider using a dimmer to control the bright. For sure I will buy a few more for my home project.
