4000K 6500K 24V 16.4Ft 480LEDs RF Control dimmable led strip

I'm Online Chat Now

4000K 6500K 24V 16.4Ft 480LEDs RF Control dimmable led strip

4000K 6500K 24V 16.4Ft 480LEDs RF Control dimmable led strip
4000K 6500K 24V 16.4Ft 480LEDs RF Control dimmable led strip 4000K 6500K 24V 16.4Ft 480LEDs RF Control dimmable led strip 4000K 6500K 24V 16.4Ft 480LEDs RF Control dimmable led strip 4000K 6500K 24V 16.4Ft 480LEDs RF Control dimmable led strip 4000K 6500K 24V 16.4Ft 480LEDs RF Control dimmable led strip

Large Image :  4000K 6500K 24V 16.4Ft 480LEDs RF Control dimmable led strip

Product Details:
Place of Origin: China
Brand Name: XUANCAI
Certification: CE ROHS LM-80
Model Number: 8MM 15W/M Flexible Led Cob Strip Light
Payment & Shipping Terms:
Minimum Order Quantity: 5 Meter/ Roll
Price: $2-$4/ Meter
Packaging Details: Blister box packaging
Delivery Time: 3-5 days
Payment Terms: T/T, Western Union, Paypal , Alibaba trade assurance
Supply Ability: 100000M / Month

4000K 6500K 24V 16.4Ft 480LEDs RF Control dimmable led strip

Description
Model: 8MM 15W/M Flexible Led Cob Strip Light Wattas: 10W
Voltage: DC12V/ DC24V CRI: >90
Luminous Efficacy: 110-120LM/W CCT: 2700K/ 3000K/ 4000K/ 6500K
LED Qty(LEDs/M): 512LEDs Chip Brand: Sanan Chip
Packaging Details: 5Meter/Roll Storage Temperature: -40...+85
Working Temperature: -20...+45 Certification: CE ROHS LM-80
Warranty: 2-3 Years Warranty Spanlife: 50,000Hours
IP Rating: IP20/ IP67 PCB Width: 8MM
High Light:

16.4Ft dimmable led strip

,

24V dimmable led strip

,

mains dimmable led strip

15W/M 24V CRI90 Kit Flexible High Density LED Rope 16.4Ft 480LEDs/m RF Dimmable Controller FOB COB LED Strip for Home AC Adapter



Advantages of COB STRIP LIGHTS
1. Premium FLEXIBLE COB LED light strips, More Durable and Reliable for use.
2. Uniform illumination, Soft Light, No glare, No eye damage, Better Lumen-Per-Watt, Ratios and Heat Efficiency.
3. Cuttable, Bendable(0-180 degree), Suitable for DIY decoration Hotel, Staircase, Kitchen and Roof.
4. All in one kit , power supply ,controller and FCOB LED strip.

Product Description

Product Information
Model

 8MM 15W/M Flexible Led Cob Strip light

FPC Width
8MM
Power
  15W/M, 75W/Roll
Voltage
 DC12V/ 24V

Color

 Warm White/ Natural White/ Cool White

LEDs/ Meter)
480Leds/ M
CRI(Ra)
90

 Luminous Efficacy

110-120LM/W

Packaging Details



   5 Meter/ Roll





Product Details

Product size
(mm)
Input voltage
(V)
Half a meter powe (W) Emitting color CRI Luminous efficiency
(LM/W)
Color tolerance
500*8mm DC24V 7.5W 2700K 90 95-100 ≤3
500*8mm DC24V 7.5W 3000K 90 100-105 ≤3
500*8mm DC24V 7.5W 4000K 90 110-115 ≤3
500*8mm DC24V 7.5W 6500K 90 115-120 ≤3





Reliability test standards

(Apilot project)

(Number of test)

(Test conditions)

(Decision criteria)

(Test Vequipment)

Cold and hot shock

10pcs

-40℃/30min -- 120℃/30min, one Cycle

per hour, 100 cycles in total.



No glue crack/dead light

Cold and heat shock

chamber

The normal temperature aging

10pcs



Ambient temperature 25±5℃, rated voltage /1000hr, 168H to test the photoelectric parameters once.

1Droop 10% or less

2.No glue crack/dead

light

Normal temperature aging block
High temperature and high humidity



10pcs

Ambient temperature 85±5℃, rated voltage /1000hr, 168H to test the photoelectric parameters once.

1.Droop 10% or less

2. No glue crack/dead light



High temperature and high humidity

aging tank





Packing method

1. Reel packaging

4000K 6500K 24V 16.4Ft 480LEDs RF Control dimmable led strip 0



LED light barwidth Reel size Meters per roll Number of rolls per carton
4mm 5.1 inches 5 10
8mm 5.1 inches 5 10
10mm 5.1 inches 5 10





2. Blister box packaging

4000K 6500K 24V 16.4Ft 480LEDs RF Control dimmable led strip 1

LED light barwidth

Blister box size

The packing layer



Number of packing strips per carton

4mm 510*123*25mm 10 300
8mm 510*123*25mm 10 150
10mm 510*123*25mm 10 120

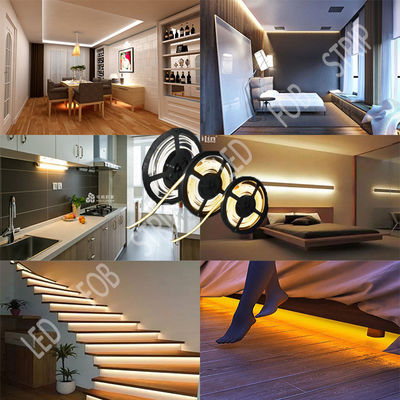

Application

①Outdoor Lighting: Buildings, Advertising walls, Signs, Christmas decorations, Swimming pool, Park, Ice rinks

②Indoor Lighting: Polygonal wall, Ceiling groove design of hotel, Nightclub , KTV etc

③Home dark groove edge : Door frame, Bar, Wine cabinet, Wardrobe, TV cabinet...)

④Car beauty, Cabinet lights, Staircase lights, Wardrobe lights, Mirror lights, Frame lights, Advertising light boxes, Balance bikes

4000K 6500K 24V 16.4Ft 480LEDs RF Control dimmable led strip 24000K 6500K 24V 16.4Ft 480LEDs RF Control dimmable led strip 34000K 6500K 24V 16.4Ft 480LEDs RF Control dimmable led strip 4





Customer feedback

1. I put a video up of what it looks like in a completely dark room. The remote is super easy to use and there's a control of how bright you want it. There's a flasher mode that is strobe to the max! We were going to put in the garage, but I liked it so much I use it in my at home work space. I'm waiting on some new office stuff before I stick it, so I've been draping it around. Everyone wants one now in their room because it brightens it up so well.



2. I have used smd led strips for over a decade now. I have seen them all some are better than other for sure, but hands down these are the brightest I have ever used. Their uniform light and flicker free dimmability is well worth paying a little more for. I bought them to replace 5050 smd lights. I figured 2 rows of the COB should be able to replace my current set up of row rows. Turns out Just one row was more than enough. Great product !!! Let’s see how they hold up over time. Fingers crossed.



3. Four different brightness settings. My husband and I really like them. Great product! Easy to install and very bright. Perfect for my diy vanity station for applying makeup in the morning. Our bedroom does not get the best morning light so this helps a lot!
