6868 10W Chip Uv Led chip 395NM In Printing Ink 3D Flatbed Printing

6868 10W Chip Uv Led chip 395NM In Printing Ink 3D Flatbed Printing
6868 10W Chip Uv Led chip 395NM In Printing Ink 3D Flatbed Printing 6868 10W Chip Uv Led chip 395NM In Printing Ink 3D Flatbed Printing 6868 10W Chip Uv Led chip 395NM In Printing Ink 3D Flatbed Printing 6868 10W Chip Uv Led chip 395NM In Printing Ink 3D Flatbed Printing 6868 10W Chip Uv Led chip 395NM In Printing Ink 3D Flatbed Printing

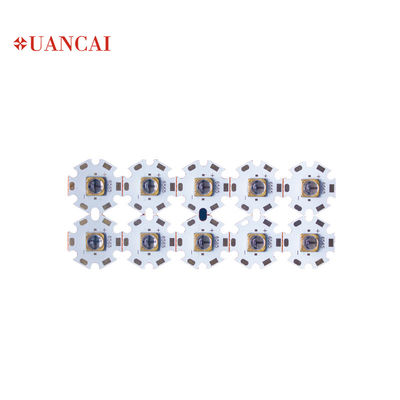

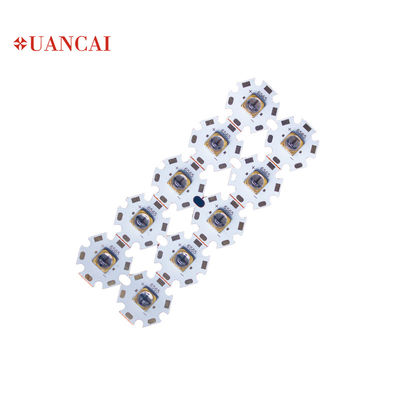

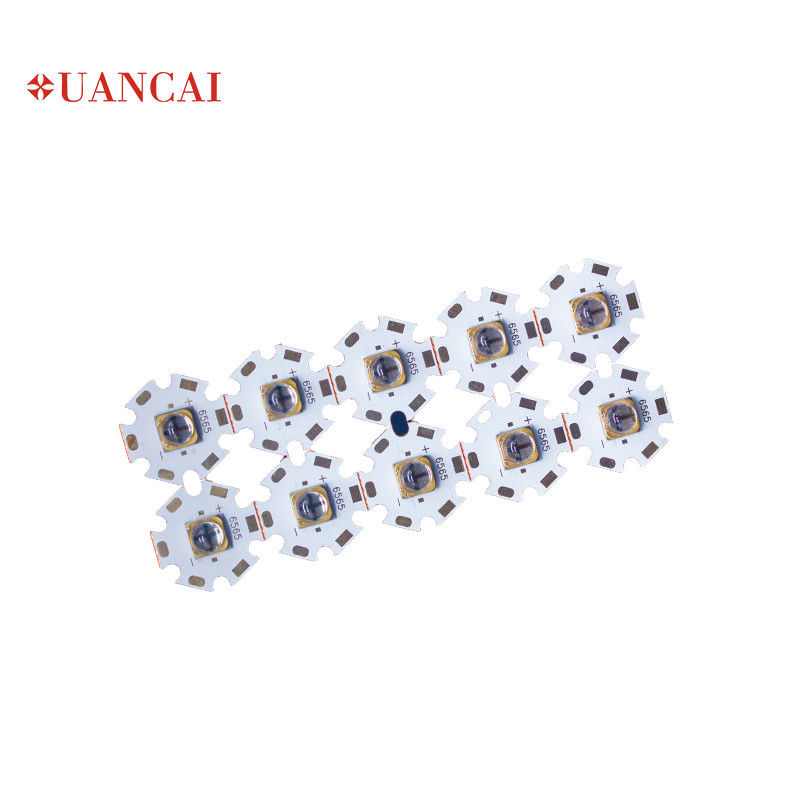

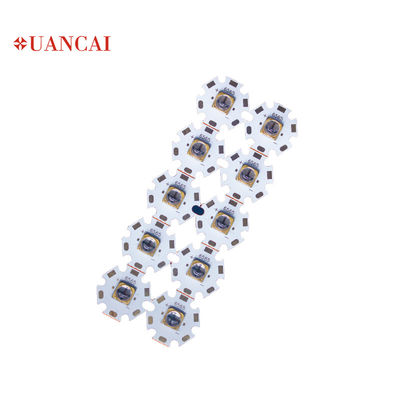

Large Image :  6868 10W Chip Uv Led chip 395NM In Printing Ink 3D Flatbed Printing

Product Details:
Place of Origin: China
Brand Name: XUANCAI
Certification: CE ROHS LM-80
Model Number: 380-385NM UV LED
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: $2-$ 4/ PCS
Packaging Details: Blister box packaging
Delivery Time: 4-7 days
Payment Terms: T/T, Western Union, Paypal , Alibaba trade assurance
Supply Ability: 30000000 PCS/ Month

6868 10W Chip Uv Led chip 395NM In Printing Ink 3D Flatbed Printing

Description
Model: 380-385NM UV LED Size: 68*68
Power: 5-10W Current: 1000mA
Voltage: 6.4-7.6V Wavelength: 380-385NM
Chip Brand: Korea LG Wire: 99.99 Gold Wire
Viewing Angle: 120/60 Spanlife: 50,000 Hours
Warranty: 3 Years Application: ultraviolet Disinfection/ UV Curing/ UV Ink Curing
High Light:

Chip Uv Led 395NM

,

10W Uv Led 395NM

,

Led Uv 395nm

5-10W 6868 380-395NM UV LED Module Quartz package UV LED used in Printing/ ink/ 3D flatbed printing/ Insect control





Applications

ultraviolet disinfection/ uv curing/ UV Ink Curing/ Printing/ Moth-killing lamp/ l Medical treatment and health/ General use



Product Parameters



Product Information
Item
 5-10W SMD LED
Size
  68*68
Current
   1000mA
Voltage
 6.4-7.6V
Wavelength
    380-385nm
Chip Brand
  Korea  LG
Quantity/ Reel
    1000pcs
Warranty
Spanlife



  3 Years
50000 hours



Features

1. Size(mm): 5.0× 5.0×4.5

2. Ceramic and silicone molding package

3. Suitable for all SMT assembly and solder process

4. Wide viewing angle: 120°/60

5. Pb-free reflow soldering application

6. RoHS compliant





Package Dimensions

6868 10W Chip Uv Led chip 395NM In Printing Ink 3D Flatbed Printing 0





Typical Optical/ Electrical Characteristics @Ta=25



Symbol





Item

Min.

Typ.

Max.

Units

Test Conditions

Ie Radiant intensity mW/sr IF=1000mA
0e Radiation Power 3500 4500 mw IF=1000mA
VF Forward Voltage [1] 6.0 6.8 v IF=1000mA
λd Wave length nm IF=1000mA
λp PeakWavelength 395 405 nm IF=1000mA
20-1/2 50% power angle 60   deg IF=1000mA
IR Reverse Current 20 uA VR = 5V







Electro-Optical Characteristics (Ta=25℃)

Item

Symbol

Absolute Maximum Rating



Units

Power dissipation Pd



7

W
DC Forward Current IF 1000 mA
Peak Forward Current IFp 1500 mA
Reverse Voltage VR 5 V
Operating Temperature Topr -20 ~ +85 ℃
Storage Temperature Tstg -40 ~ +100 ℃
Junction Temperature Tj 100°C



Tapping specifications (Units: mm)

Tape Dimensions: Loaded Quantity 1000pcs per reel

6868 10W Chip Uv Led chip 395NM In Printing Ink 3D Flatbed Printing 1




Application



6868 10W Chip Uv Led chip 395NM In Printing Ink 3D Flatbed Printing 26868 10W Chip Uv Led chip 395NM In Printing Ink 3D Flatbed Printing 3



6868 10W Chip Uv Led chip 395NM In Printing Ink 3D Flatbed Printing 4





Precautions for use :



Soldering

SMD LED encapsulation gumwater is flexible, and external force easily damages radiant surface and plastic shell.So when soldering , Please handle with care!

A. Reflow soldering shall be not more than two times and is suggested to be taken under reflow curve conditions with No-clean Flux, .The radiant surface shall be clean and unclean surface may influence the emitting color.

B. Manual soldering is only used for reparing. Anti-static iron (25W) is recommended and tweezer or iron should not touch the radiant surface and plastic parts. The soldering time should be not more than 3 seconds.

C. Don’t twist LED in course of manual soldering and testing, which may cause LED failure.

D. Please select the LED devices in the same BIN on the same PCB, otherwise may cause chromatic aberration.



Cleaning

A . Ultrasonic cleaning is not allowed. We recommend isopropyl alcohol or pure alcohol to for cleaning or dipping within 1 minute and reuse after 15 minutes in room temperature. LThe radiant surface shall be clean after cleaning and other wisemayh influence radiant color.

B. Isoamyl acetate, trichloroethylene, acetone, sulfide, nitride, acid, alkali and salt shall be avoided from LED, which may cause damage to LED.



Encapsulation

A . Encapsulation glue containing sodium ion or sulfide shall be avoided, which may cause fading fluorescence powder (poisoning).

B . When using normal encapsulation glue, trial testing is recommended for 168-hour operation before mass production.



Storage

A. The LED should be stored at 30℃ or less and 60%RH or less before opening the package. The storage shall not be over half a year.

B. After opening the package, the LEDs should be kept at 30-35%RH or less, and should be used within 3 days.

C. When temperature card shows 20% above after package opened, baking treatment shall be conducted before use(for reel package,: baking at 60±3℃ for 12 hrs; for bulk goods, baking at 120±5℃ for 4 hrs)

D. Acid, alkali and corrosive gas should be avoided in storage environment and intensively shock and high magnetic field also avoided.
