6W 12W US Bridgelux CLU028 Size High Cri Cob Led

Citizen CLU028 Same Size XL-13.5 *13.5 /11 6W 12W High Lumens 160-170lm/w US Bridgelux 3 Years Warranty

Specification

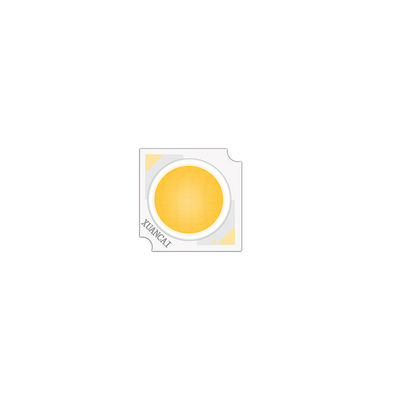

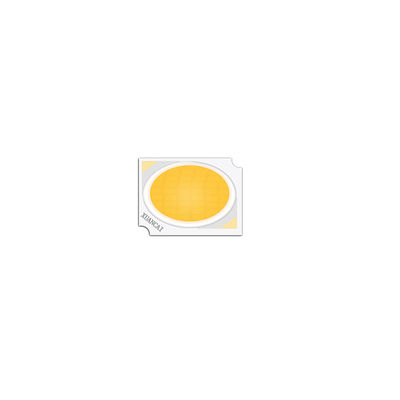

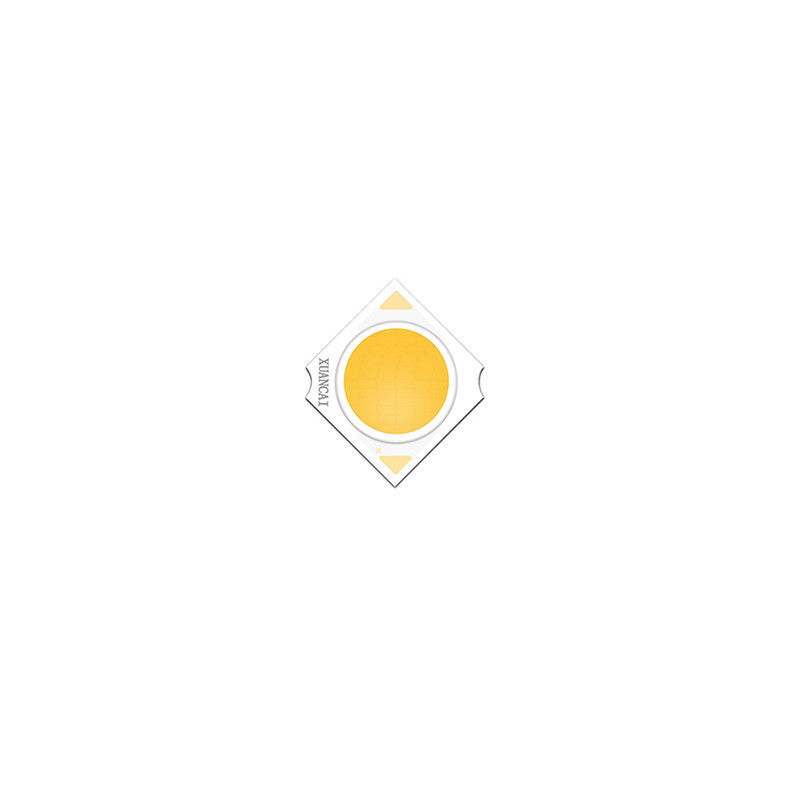

◆Mechanical Dimensions: 13.5x13.5x1.7(mm)

◆Package Structure:Aluminium Base Chip on Board

◆CRI(Ra):Min.80,Min.90,Min.95

◆Nominal CCT:2,700K,3,000K,3,500K,4,000K,5,000K,6,000K

◆Chromaticity Range: 3-step MacAdam Ellipse

◆RoHS compliant

◆Better die arrangement for optics

◆Wide range of luminous fluxand high efficacy

This type LED Array has high light efficacy,the higher performance this typeLED Arrays allow lighting manufacturers to achieve the same or better performance with a smaller LES, enabling a radical reduction in system size and cost. CL-13.35*13.35/7.5 MM LED Arrays share the same physical design as the previous generation, allowing lighting manufacturers to leverage the existing optical, mechanical and electrical design elements to accelerate time to market without additional cost. Available in 1-step, 2‑step, 3-step and 5-step EasyWhite® bins, this type LED source delivers high lumen output and high efficacy in a single, easy-to-use package that eliminates the need for reflow soldering.

Feature

Using standard CRI Index to design color points of light

Using thermoelectric separation of substrate, the heat dissipating performance is good. Thermal resistance< 2.5

Small size of the COB to achieve high power efficiency. Easy to use for customers

The reliability is further improved, and double lumen output 160-170lm/W can be achieved more than the same size

Application to Anywhere You Want to Use

1. Our LED products are optimized for non-directional lighting, including A&E replacement lamps, chandeliers, floor lamps, vanity fixtures, sconces and table lamps.

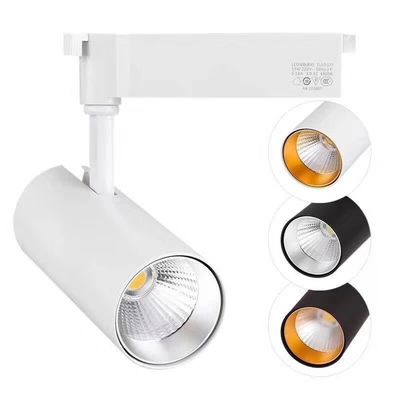

2. Our LED products are optimized for directional indoor-lighting applications, including MR & PAR LED replacement lamps, accent lighting, track lighting and spot lights.

3. Our LED products are optimized for downlights, including recessed lights, can lights, pendants and surface-mount lights.

User Manuel

Storage

To avoid moisture, we recommend storage conditions for the unopened LED +5 ~ +30℃ rela-tive humidity <60%. LED should be used within 168 Hrs. of opening the package. Please make sure to dehumidify and vacuum pack the remaining/ unused LED. Dehumidifying condition:
+120℃±5℃ of 4Hrs. Effective age for the sealed led is one year.

The soldering precautions

Soldering conditions: Reflow soldering is not recommended for this LED. If hand soldering, set sol-dering iron temperature at 350℃ and soldering time not More than 5 seconds, after the first soldering, make sure the substrate surface temperature returns to ambient temperature before a second soldering. Please. make sure when soldering, there is no external force on the soldering surface and silicon batardeau (such as pressure, friction or sharp metal nails, etc.), to avoid gold wire deformation or dam-age and other abnormalities. If beyond recommended conditions, we cannot guarantee the LED stability, please do the risk assessment first. During assembly, please ensure that a good quality thermal paste is applied and distributed evenly over the surface. While using thermal pad (Heat Sink), make sure LED is firmly tightened and there is no gap between surfaces. In such heat-media products, through a pressure test of at least 500 volts.

Anti-static measures

Please take adequate measures to prevent electrostatic generation, such as wearing electrostatic ring or anti-static fingerstall etc; any relative products like plant equipment, machinery, carrier and transpor-tation units shall be connected to discharging unit/ ground. The ESD sensitivity of this product is > 1000V(HBM), after assembly the final lamp, please make sure to discharge Static Electricity by proper ESD equipment.

The drive control

Drive this product at constant current. Output current range specifications should be ac-cording to the operational and other conditions, as mentioned in data sheet. Before using a constant voltage source or altered specifications other than recommended, please consider risk factors.
