Product Details:
|
| Size: | XL-19*19/17 MM LED COB CHIP | Power: | 36w |
|---|---|---|---|
| Current: | 750-900mA | Voltage: | 36-39v |
| Lumens: | 160-170lm/w | CRI: | 80 |
| Chip Brand: | US Bridgelux | Color Temperature: | 2700-6500k |
| Warranty: | 3 Years | Life Span: | 50000 Hours |
| Application: | Commercial Lighting | Certificate: | CE ROHS LM-80 |
| High Light: | CRI80 Cob Led Bridgelux,36w Cob Led Bridgelux,CRI80 2700K Led Chip Bridgelux |
||

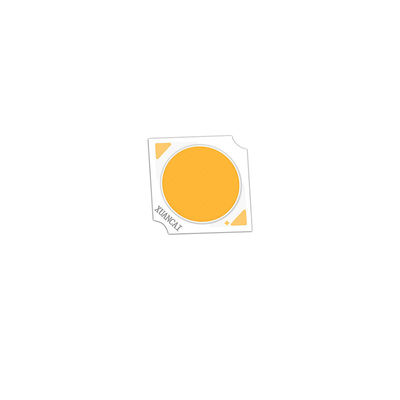

CLU038 SIZE XL-19*19/17 High Lumens 160-170LM US Bridgelux cob 36w CE ROHS LM-80 LED COB CHIP
Specification

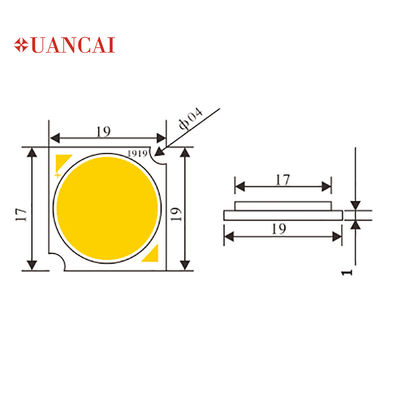

Product Size

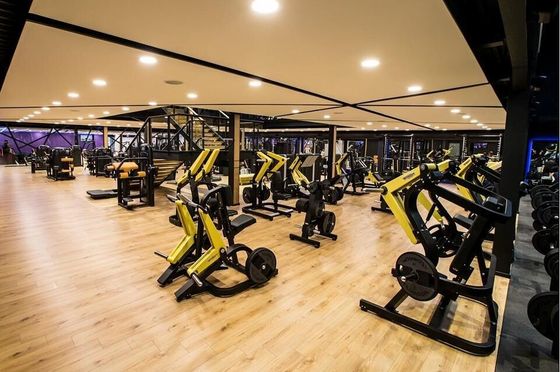

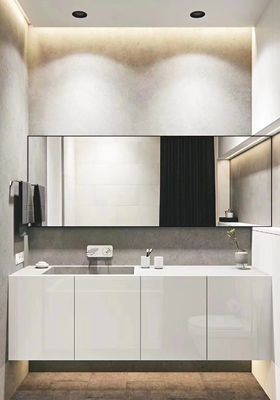

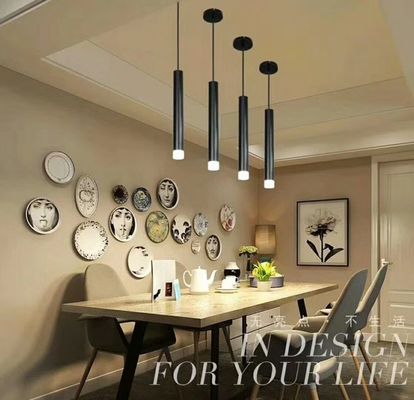

Application
User Manuel
1. Storage
To avoid moisture, we recommend storage conditions for the unopened LED +5 ~ +30℃ rela-tive humidity <60%. LED should be used within 168 Hrs. of opening the package. Please make sure to dehumidify and vacuum pack the remaining/ unused LED. Dehumidifying condition:
+120℃±5℃ of 4Hrs. Effective age for the sealed led is one year.
2. The soldering precautions
Soldering conditions: Reflow soldering is not recommended for this LED. If hand soldering, set sol-dering iron temperature at 350℃ and soldering time not More than 5 seconds, after the first soldering, make sure the substrate surface temperature returns to ambient temperature before a second soldering. Please. make sure when soldering, there is no external force on the soldering surface and silicon batardeau (such as pressure, friction or sharp metal nails, etc.), to avoid gold wire deformation or dam-age and other abnormalities. If beyond recommended conditions, we cannot guarantee the LED stability, please do the risk assessment first. During assembly, please ensure that a good quality thermal paste is applied and distributed evenly over the surface. While using thermal pad (Heat Sink), make sure LED is firmly tightened and there is no gap between surfaces. In such heat-media products, through a pressure test of at least 500 volts.
3.Temperature control
Recommended temperature conditions for enhanced product life: Be sure to TS point (negative pads) controlled below 85℃, COB recommendation colloid surface temperature control ≤150℃.
4.The drive control
Drive this product at constant current. Output current range specifications should be ac-cording to the operational and other conditions, as mentioned in data sheet. Before using a constant voltage source or altered specifications other than recommended, please consider risk factors.
