Product Details:
|
| Product Name: | XC-76/60mm Led Cob Chip | Power: | 40w |
|---|---|---|---|
| Current: | 1200mA | Voltage: | 30-32V |
| CRI: | 70 | Lumens: | 110-120lm/W |
| Certificate: | CE ROHS LM-80 | Life Span: | 50000 Hours |
| Working Temperature(℃): | -20 - 50 | Chip Brand: | Bridgelux |
| Warranty: | 3 Years | ||
| High Light: | 50w Bridgelux Cob Led 6500K,6500K Bridgelux Cob Led,6500K Led 50w Chip |
||

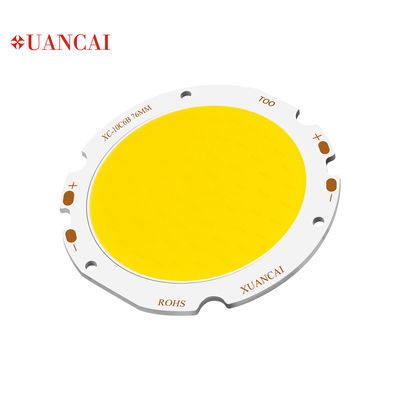

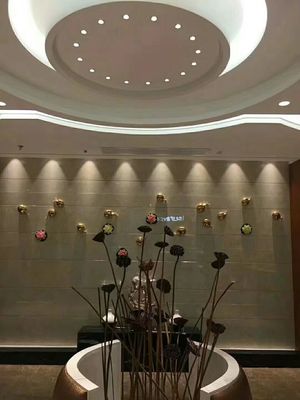

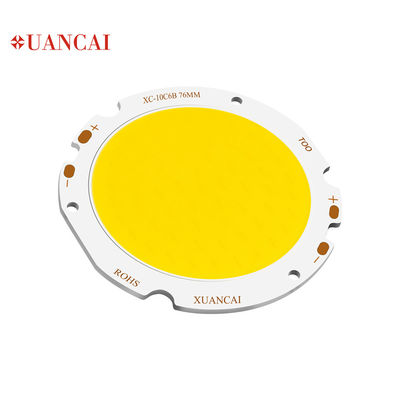

Hot selling DL-76/60 Flip chip US Bridgelux 30w 50w cob led chip Used for Ceiling Lamp & Down lamp CE ROHS LM-80
Product Description
| Produce Name | DL-76/60 Led cob chip |
| Watts | 40w |
| Current | 1200mA |
| Voltage | 30-32v |
| CRI | 70 / 80 |
| Color Temperature | 2700k - 6500K |
| Lumens | 110-120lm/W |
| Chip Brand | US Bridgelux |
| Warranty | 3 Years |
Specification

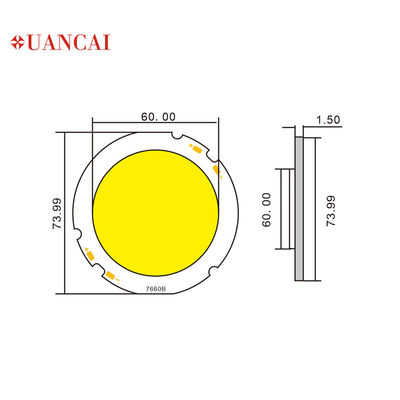

◆Mechanical Dimensions: R76.0x2.2(mm)
◆Package Structure:Aluminium Base
◆CRI(Ra):Min.70 / 80
◆Nominal CCT: 2700k, 3000k, 4000k, 6000k
◆Chromaticity Range: 3-step MacAdam Ellipse
◆RoHS CE compliant
◆Better die arrangement for optics
◆Wide range of luminous fluxand high efficacy
Product Feature
This series of products is encapsulated by LED flip-chip technology.
1.It get rid of the gold thread, enhance the anti-pressure characteristics of the light source, and strengthen the reliability of the product.
2. The LED chip is packaged directly on the substrate layer, eliminating the solid crystals, and the heat generated by the chip can be passed quickly through the substrate layer.
3. High reliability, can be used in high temperature, low temperature, high humidity, etc.
Electro Optical Characteristics
|
Product Code
|
Nominal CCT
|
CRI(Ra) | Luminous Flux(lm) | Efficacy ( lm/W ) |
Forward Current (mA) |
Voltage (V) |
||||
| Ra | R9 | |||||||||
| Min. | Min. | Min. | Typ. | Typ. | Min. | Typ. | Max. | |||
| XC7660-M1008-A3080-E33 | 3000K | 80 | 0 | 4400 | 4900 | 110-120 | 1200 | 30 | 30.5 | 31 |
