Product Details:
|
| Product Name: | SMD 3030 | Watt: | 1w |
|---|---|---|---|
| Current: | 150mA / 300mA | Voltage: | 6v / 3v |
| Color Temperature: | 3000k / 4000K / 6000k | Lumens: | 130-140lm |
| Chip Brand: | US Bridgelux | Warranty: | 3 Years |
| CRI: | 70/80 | ||
| High Light: | 3030 Super Bright Smd Led,1W Super Bright Smd Led,Smd Led For Led Bulb |
||

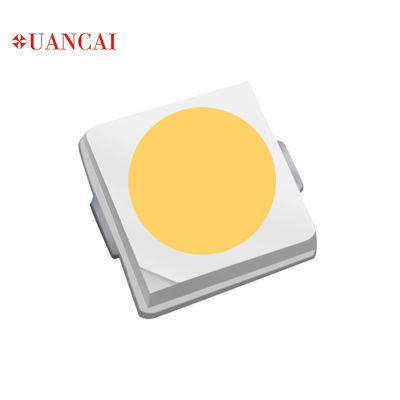

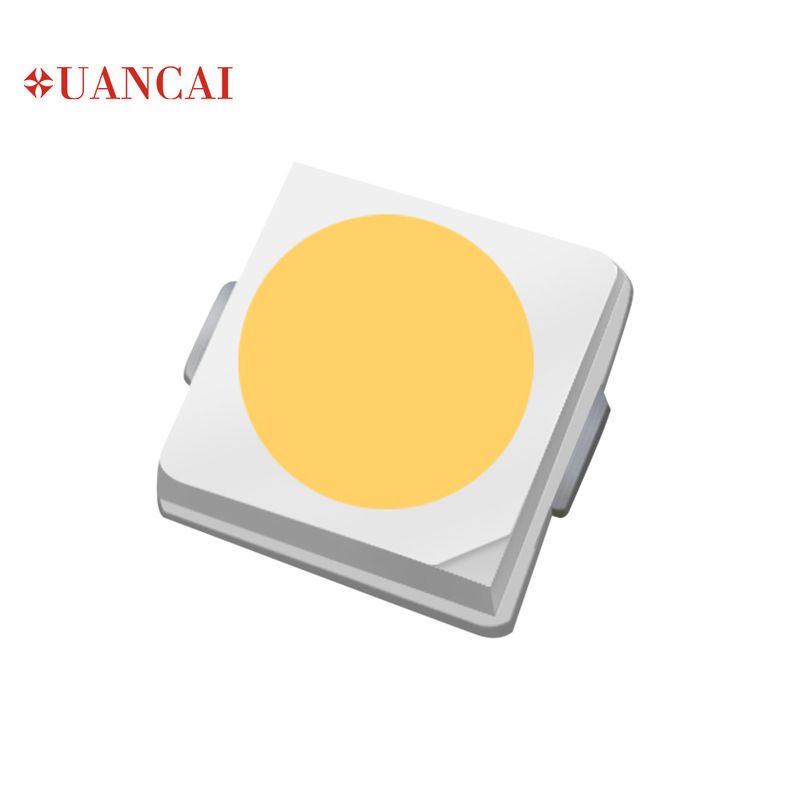

1W 3030 SMD LED Super Bright 130-140LM Good Quality SMD LED 3 Years Warranty Gold Wire CE ROHS
Product Description
|
Product Name |
SMD 3030 |
|
Current |
150mA / 300mA |
|
Voltage |
6v / 3v |
|
CRI |
70/80 |
|
Lumens |
130-140lm |
| Chip Brand | US Bridgelux |
|
Chip Brand Color Temperature |
US Bridgelux 3800-4200k/ 2800-3150K / 5800-6300k / 6500-7500K |
Feature
1.1 Package Size: 3.0*3.0*0.65mm
1.2 Light-emitting Type
1.3 Soldering Method: SMT Reflow Soldering
1.4 Emitted Color: White
1.5 RoHS standard complied.
Package Outlinke Dimension
Notes:
1．All dimensions are in millimeters (inches).
2．Tolerance is ±0.10mm unless otherwise specified.
Electrical-optical characteristics ( Ta=25)
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Condition |
| Forward Voltage | Vf | 5.8 | ---- | 6.4 | V | IF=150mA |
| Luminous Intensity | Lm | 130 | ----- | 140 | lm | |
| Viewing Angle | 2θ1/2 | ---- | 120 | ---- | deg | |
| Color rendering index | RA | 80 | --- | -- | % | |
| Correlated Color Temperature | CCT | 5800 | --- | 6300 | K | |
| Reverse Current | IR | ---- | ---- | 1 | μA | VR=5V |
