Product Details:
|
| Product Name: | XC-19*19/17 Bread Light | Watt: | 20-50w |
|---|---|---|---|
| Current: | 500-1200mA | Voltage: | 36-39v |
| CRI: | >95 | Chip Brand: | Bridgelux |
| Certificate: | CE ROHS, LM-80 | Color Temperature: | 2700-6000K |
| Application: | Food Bread / Fresh Fruit / Vegetable | ||
| High Light: | 1717 Led Cob Bulb Chip,6000K Led Cob Bulb Chip,6000K chip on board leds |
||

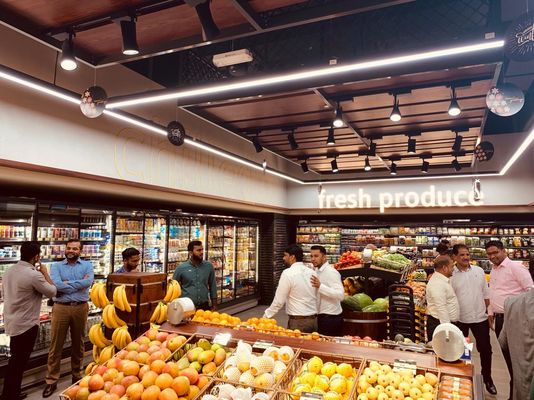

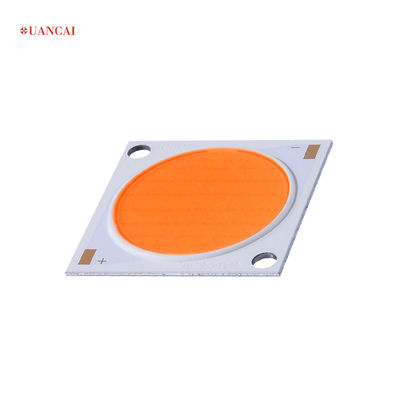

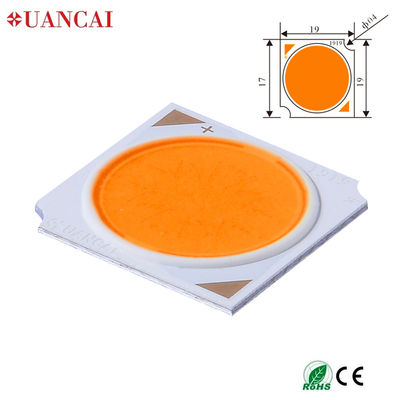

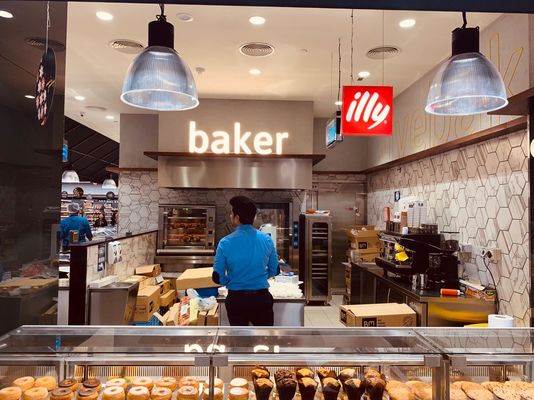

Commercial special color light designed for Food Bread / Fresh Fruit / Vegetable COB LED Chip 19*19/17
Product Specification
| Product Name | XC-19*19/17 Bread Light |
| Power | 20-50w |
| Current | 500-1200mA |
| Voltage | 36-39v |
| CRI | >95 |
| Application | Bread Light |
| Color Temperature | 2700-6500k |
[3]:Luminescent surface
[4]:Optical effect level
[5]:Number of LED chips in Series
[6]:Number of LED chips in parallel
[7]:Color category
[8]:Nominal CCT
[9]:Color index
[10]: Light range
[11]:Chromaticity Range
[12]:Type of substrate
Electro Optical Characteristics
|
Product Code
|
Nominal CCT
|
CRI(Ra) | Luminous Flux(lm) | Efficacy ( lm/W ) |
Forward Current (mA) |
Voltage (V) |
||||
| Ra | R9 | |||||||||
| Min. | Min. | Min. | Typ. | Typ. | Min. | Typ. | Max. | |||
| XC1917-M1208-C2790-C31 | 2700K | 90 | 50 | 4912 | 5150 | 112 | 1200 | 36 | 37 | 38 |
Absolute Maximum Ratings
| Parameter | Symbol | Rating |
| Forward Current | IF | 1800mA |
| Reverse Current | IR | 1mA |
| Operating Temperature | TOPR | -30℃ To +75℃ |
| Storage Temperature | Tst | -30℃ To +75℃ |
| Case Temperature | Tc | 85℃ |
| Junction Temperature | TJ | 125℃ |
| Soldering Temperature | TSOL | 350℃± 10℃ For 5 Seconds |
| ESD Sensitivity | ESD | 2000V HBM |
