Description

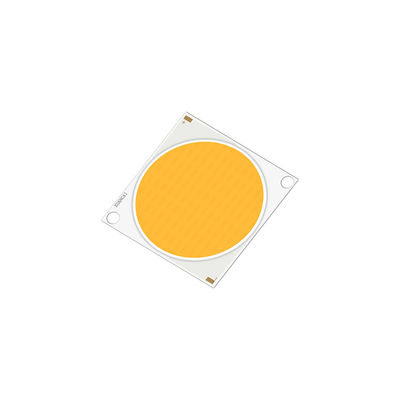

Product Name: CL-27.35*27.35/23MM LED COB CHIP Size: 28*28/24MM
Wattas: 60W Voltage: 36-39V/ 30-32V
Current: 1500mA CCT: 2700K, 3000K, 4000K, 5000K, 6000K, 7000K
CRI: 95 Chip Brand: Bridgelux Chip/ Sanan Chip/ Epistar Chip
Certificate: CE ROHS LM-80 Application: Shopping Mall Light/ Hotel Light/ Clothing Light
Warranty: 3 Years Spanlife: 50,000 Hours
High Light:

60W 95 Cri Led

,

Bridgelux 95 Cri Led

,

95 Cri Led chip

Cxb3050/ Cxb3070 Size Bridgelux Chip High CRI95 30V 36V 48W 60W LED COB Chip White Red Blue Green Yellow 3 Years Warranty


Product Description



Product Information
Size
 CL-28*28/24MM
Product name
60W LED COB CHIP
Power
   60W
Voltage
  36-39V
Current
1500mA
Chip Brand
 US Bridgelux
CRI

   >95

Luminous efficacy
 130-140LM/W






Electro Optical Characteristics

Product Code



Nominal CCT



CRI(Ra) Luminous Flux(lm) Efficacy ( lm/W )

Forward

Current

(mA)

Voltage

(V)

    Ra R9
    Min. Min. Min. Typ. Typ.   Min. Typ. Max.
28*28/24MM 2700K 95 90 5004 5267 98 1500 35 36 37
28*28/24MM 3000K 95 90 5212 5486 102 1500 35 36 37
28*28/24MM 3500K 95 90 5368 5651 105 1500 35 36 37
28*28/24MM 4000K 95 90 5421 5706 106 1500 35 36 37
28*28/24MM 5000K 95 90 5316 5596 104 1500 35 36 37
28*28/24MM 6000K 95 90 5264 5541 103 1500 35 36 37



Mechanical Dimensions

White Red Blue Green Yellow Bridgelux 30V 36V 48W 60W 95 Cri Led 0





Absolute Maximum Ratings


Parameter Symbol Rating
Forward Current IF 2400mA
Reverse Current IR 1mA
Operating Temperature TOPR -30℃ To +75℃
Storage Temperature Tst -30℃ To +75℃
Case Temperature Tc 85℃
Junction Temperature TJ 125℃
Soldering Temperature TSOL 350℃± 10℃ For 5 Seconds
ESD Sensitivity ESD 2000V HBM





Reliability Test

No. Test Item Test Condition Test Cycle
1

Continuous Operation Test

Tc=85℃

IF=1500mA

1000H
2

Low/High Temperature Storage Test

-40℃/30min~

+100℃/30min

100 Cycles
3

High Temperature Storage Test

Ta=100℃ 1000H
4

Low Temperature Storage Test

Ta=-40℃ 1000H
5

Moisture-proof Test

Tc=60℃ ,95%RH 1000H





Application

White Red Blue Green Yellow Bridgelux 30V 36V 48W 60W 95 Cri Led 1White Red Blue Green Yellow Bridgelux 30V 36V 48W 60W 95 Cri Led 2



White Red Blue Green Yellow Bridgelux 30V 36V 48W 60W 95 Cri Led 3







User Manuel



Storage

To avoid moisture, we recommend storage conditions for the unopened LED +5 ~ +30℃ rela-tive humidity <60%. LED should be used within 168 Hrs. of opening the package. Please make sure to dehumidify and vacuum pack the remaining/ unused LED. Dehumidifying condition:
+120℃±5℃ of 4Hrs. Effective age for the sealed led is one year.



The soldering precautions

Soldering conditions: Reflow soldering is not recommended for this LED. If hand soldering, set sol-dering iron temperature at 350℃ and soldering time not More than 5 seconds, after the first soldering, make sure the substrate surface temperature returns to ambient temperature before a second soldering. Please. make sure when soldering, there is no external force on the soldering surface and silicon batardeau (such as pressure, friction or sharp metal nails, etc.), to avoid gold wire deformation or dam-age and other abnormalities. If beyond recommended conditions, we cannot guarantee the LED stability, please do the risk assessment first. During assembly, please ensure that a good quality thermal paste is applied and distributed evenly over the surface. While using thermal pad (Heat Sink), make sure LED is firmly tightened and there is no gap between surfaces. In such heat-media products, through a pressure test of at least 500 volts.



Anti-static measures

Please take adequate measures to prevent electrostatic generation, such as wearing electrostatic ring or anti-static fingerstall etc; any relative products like plant equipment, machinery, carrier and transpor-tation units shall be connected to discharging unit/ ground. The ESD sensitivity of this product is > 1000V(HBM), after assembly the final lamp, please make sure to discharge Static Electricity by proper ESD equipment.



Temperature control

Recommended temperature conditions for enhanced product life: Be sure to TS point (negative pads) controlled below 85℃, COB recommendation colloid surface temperature control ≤150℃.



The drive control

Drive this product at constant current. Output current range specifications should be ac-cording to the operational and other conditions, as mentioned in data sheet. Before using a constant voltage source or altered specifications other than recommended, please consider risk factors.
