Product Details:
|
| Model: | Ceramic Light Color | Size: | CL-18*18/14MM |
|---|---|---|---|
| Power: | 36W | Voltage: | 36-39V |
| Current: | 900mA | Luminous Efficacy: | 120-130LM/W |
| CRI: | 90 | Certificate: | CE ROHS LM-80 |
| Warranty: | 3-5 Years | Application: | Ceramic Light Color |
| Operating Temperature: | -40℃ To +75℃ | Storage Temperature: | -40℃ To +75℃ |
| High Light: | CXA1830 36W Special Color Led Cob,CXA1830 Special Color Led Cob,750mA 36W Bridgelux Cob Led |
||

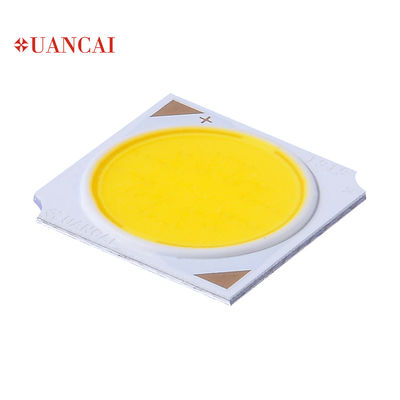

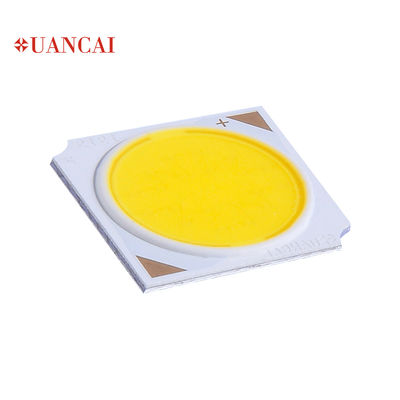

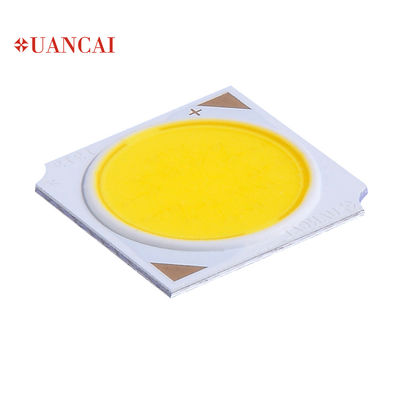

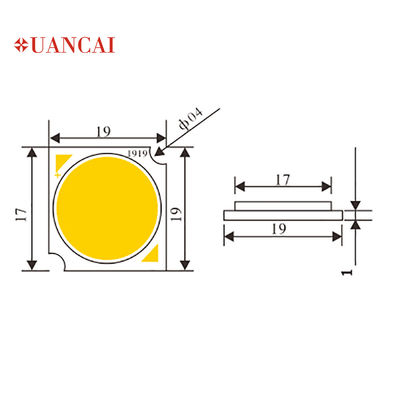

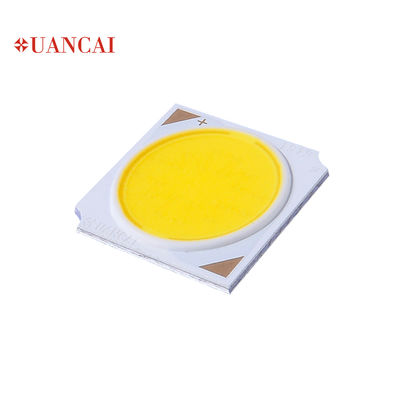

CXA1830 Size 30W 36W Bridgelux Chip LED COB Chip For Ceramic Lighting 3 Years Warranty 19*19/17MM
Product Description
Specification
Electro Optical Characteristics
|
Product Code |
Nominal CCT | CRI(Ra) | Luminous Flux(lm) | Efficacy ( lm/W ) | Forward Current (mA) | Voltage (V) | ||||
| Ra | R9 | |||||||||
| Min. | Min. | Min. | Typ. | Typ. | Min. | Typ. | Max. | |||
|
XC1814-M1206 -C3290-A31 |
3200K |
90 |
70 |
5139 |
5291 |
91 |
900 |
36 |
37 |
38 |
Absolute Maximum Ratings
| Parameter | Symbol | Rating |
| Forward Current | IF | 1500mA |
| Reverse Current | IR | 1mA |
| Operating Temperature | TOPR | -30℃ To +75℃ |
| Storage Temperature | Tst | -30℃ To +75℃ |
| Case Temperature | Tc | 85℃ |
| Junction Temperature | TJ | 125℃ |
| Soldering Temperature | TSOL | 350℃± 10℃ For 5 Seconds |
| ESD Sensitivity | ESD | 2000V HBM |
Application
Clothing light color/ Ice Seafood light color/ Bacon light color/ Fresh meat light/ Food bread light color/ Fresh fruit light color/ vegetable light color/ mahogany furniture light color/ Rice light color/ Home software light color/ Ceramic light color
Related products Parameters
| Ceramic light color LED COB CHIP | |||||||||
| Size | Power | Voltage | Current | Color Temperature | Application | ||||
| 13.5*13.5/11mm | 18W | 36-39V | 450mA | 4500K | Ceramic light color | ||||
| 5000K | |||||||||
| 5500K | |||||||||
| 18*18/14mm | 30W | 36-39V | 750mA | 4500K | |||||
| 5000K | |||||||||
| 5500K | |||||||||
| 18*18/14mm | 36W | 36-39V | 900mA | 4500K | |||||
| 5000K | |||||||||
| 5500K | |||||||||
User Manuel
Storage
To avoid moisture, we recommend storage conditions for the unopened LED +5 ~ +30℃ rela-tive humidity <60%. LED should be used within 168 Hrs. of opening the package. Please make sure to dehumidify and vacuum pack the remaining/ unused LED. Dehumidifying condition:
+120℃±5℃ of 4Hrs. Effective age for the sealed led is one year.
The soldering precautions
Soldering conditions: Reflow soldering is not recommended for this LED. If hand soldering, set sol-dering iron temperature at 350℃ and soldering time not More than 5 seconds, after the first soldering, make sure the substrate surface temperature returns to ambient temperature before a second soldering. Please. make sure when soldering, there is no external force on the soldering surface and silicon batardeau (such as pressure, friction or sharp metal nails, etc.), to avoid gold wire deformation or dam-age and other abnormalities. If beyond recommended conditions, we cannot guarantee the LED stability, please do the risk assessment first. During assembly, please ensure that a good quality thermal paste is applied and distributed evenly over the surface. While using thermal pad (Heat Sink), make sure LED is firmly tightened and there is no gap between surfaces. In such heat-media products, through a pressure test of at least 500 volts.
Anti-static measures
Please take adequate measures to prevent electrostatic generation, such as wearing electrostatic ring or anti-static fingerstall etc; any relative products like plant equipment, machinery, carrier and transpor-tation units shall be connected to discharging unit/ ground. The ESD sensitivity of this product is > 1000V(HBM), after assembly the final lamp, please make sure to discharge Static Electricity by proper ESD equipment.
Temperature control
Recommended temperature conditions for enhanced product life: Be sure to TS point (negative pads) controlled below 85℃, COB recommendation colloid surface temperature control ≤150℃.
The drive control
Drive this product at constant current. Output current range specifications should be ac-cording to the operational and other conditions, as mentioned in data sheet. Before using a constant voltage source or altered specifications other than recommended, please consider risk factors.
