Product Details:
|
| Product Name: | 10MM 15W/M Flexible Led Cob Strip | Power: | 15W |
|---|---|---|---|
| Voltage: | DC24V/DC12V | CRI: | 90 |
| Lumens: | 110-120LM/W | Color Temperature: | RED/ BLUE/ GREEN/ YELLOW/ WHITE |
| Warranty: | 3 Years | Life Span: | 50000 Hours |
| Certificate: | CE ROHS LM-80 | Working Temperature(℃): | -65 - 80 |
| Application: | KTV/Commercial Light/Shopping Mall Light | Chip Brand: | Sanan Chip/ Bridgelux Chip |
| High Light: | 480Leds COB LED Strip,75W Roll COB LED Strip,led strip dc 12v |
||

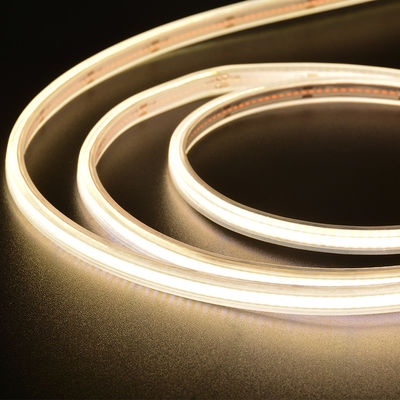

Factory Supplier 12V 24V 10MM 15W/M 75W/Roll 480Leds CRI90+ Flexible Cob Led Strip For Commercial Light/ Shopping Mall Light/ Kitchen Light
Product Description
Specification
Product details
| Company abbreviation |
Product size (mm) |
(V) |
Half a meter powe (W) | Emitting color | CRI |
Photosynthetic efficiency level (lm/w) |
Color tolerance |
| XC | 500*10mm | DC24V | 7.5W | 2700K | ＞90 | 100-105 | ≤3 |
| XC | 500*10mm | DC24V | 7.5W | 3000K | ＞90 | 100-105 | ≤3 |
| XC | 500*10mm | DC24V | 7.5W | 4000K | ＞90 | 125-130 | ≤3 |
| XC | 500*10mm | DC24V | 7.5W | 6500K | ＞90 | 120-125 | ≤3 |
Product Size
Reliability test standards
|
(Apilot project) |
(Number of test) |
(Test conditions) |
(Decision criteria) |
(Test Vequipment) |
| Cold and hot shock |
10pcs |
-40℃/30min -- 120℃/30min, one Cycle per hour, 100 cycles in total. |
No glue crack/dead light |
Cold and heat shock chamber |
| The normal temperature aging |
10pcs |
Ambient temperature 25±5℃, rated voltage /1000hr, 168H to test the photoelectric parameters once. |
1. Droop 10% or less 2.No glue crack/dead light |
Normal temperature aging block |
| High temperature and high humidity |
10pcs |
Ambient temperature 85±5℃, rated voltage /1000hr, 168H to test the photoelectric parameters once. |
1. Droop 10% or less 2. No glue crack/dead light |
High temperature and high humidity aging tank |
Distribution range of color coordinates
Advantages as below
1. Uniform illumination, dot free
2. better light decay
3. better heat-dissipation
4. High color efficiency
5. Waterproof: IP20-IP68
6. can be built-in aluminum profile with PC cover
Application area
①. Lighting the city skyline (buildings, advertising walls, signs, Christmas decorations...)
② Decoration of irregular design body (polygonal wall, water drop and ceiling groove design of hotel/nightclub /KTV etc.)
③. Home dark groove edge (door frame, bar, wine cabinet, wardrobe, TV cabinet...)
④. Car beauty (body,underside...)
HOW TO INSTALL
Trade Show
Customers feedback
1. These are much better when used as under cabinet lighting than the standard chip style. Especially with reflective countertops. It's much more uniform and clean looking in the reflection. I install many strips through my electrical business. These were very great.
2. My customer is so happy with this lighting. The leds are bright and dimmable and a great white shade., not blue or amber. Most importantly they are a solid light, no dots. Looks very high end. This is the only led strip lighting I will install from now on.
3. I have used a ton of other products from skye and this is by far my favorite. It looks awesome without all the individual diodes. I used a 24v transformer and made sure the wattage was rated higher that the 3w per ft I planned to use. These bend much tighter and are more flexible than other brands if used as well. I combine these with aluminum channels I buy from amazon to make them look like a fixture, including inside and outside corners.
Awesome light
4. These lights are excellent! Very well made and stick very well. The look behind my tv is freaking awesome! I cant tell you how much better my living room looks now! Definitely a great choice, will buy more!
5. I normally don't write reports but I was surprised for good about this product. Unbelieved brightness. Consider using a dimmer to control the bright. For sure I will buy a few more for my home project.
