Product Details:
Place of Origin: China
Brand Name: XUANCAI
Certification: CE ROHS
Model Number: XC-TN150W36/29
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: $31- $ 36.7
Packaging Details: Blister box packaging
Delivery Time: 3-5 days
Payment Terms: T/T, Western Union, Paypal , Alibaba trade assurance
Supply Ability: 10000M / Month

Tunable Csp Led Chips

Description
Product Name: XC-TN150W36/29 LED COB Chip Watt: 150w
Current: 2300mA Voltage: 36-39v
Applicant: Photography / Camera / Studio Light Warranty: 3 Years
Life Span: 50000 Hours Certificate: CE ROHS
Working Temperature(℃): -20 - 50 Color Temperature: 2700-6000k
High Light:

Dimmable Csp Led Chips

,

Dimmable Tunable Csp Led Chips

,

Dimmable Csp tunable led

CSP Ra> 95 Photographic lighting Led Projector 150W Tunable Dimmable Led COB Chip 36*29mm For Studio Stage Film Lights



Feature

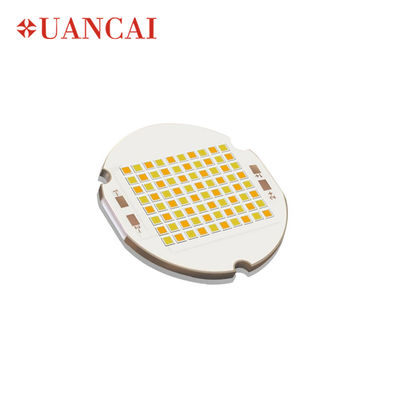

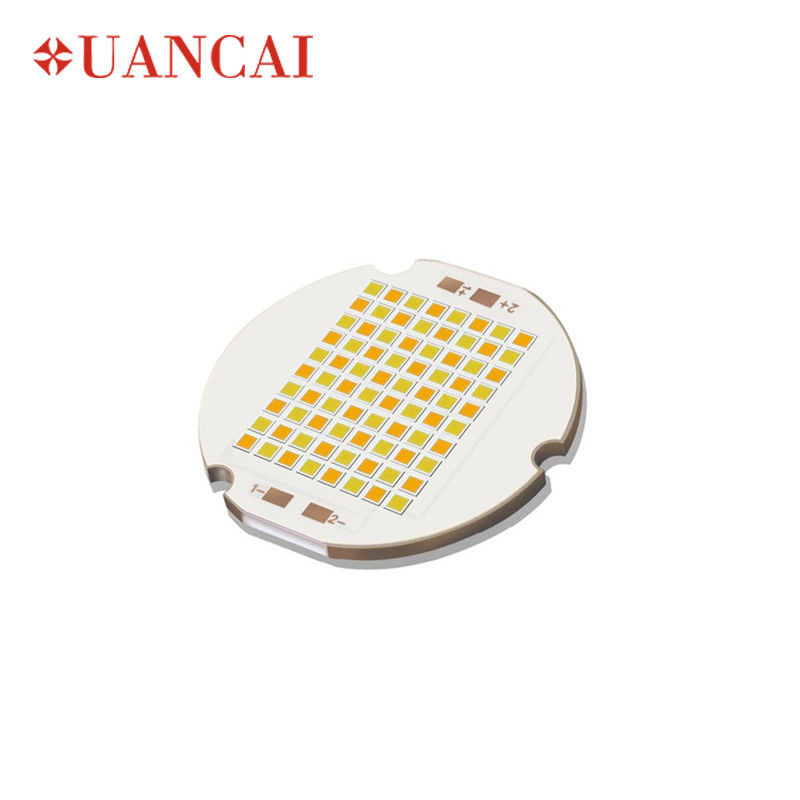

XUANCAI Dimming COB Light Source, CSP Chip, Adjustable Light COB

Light Source: CCT Tunable For Hotel Retail and Residential Direction Lighting.

The Heating Light Source has good Luminous Effect and Uniform Spot.



Product Information
Product Item
XC-TN150W36*36/29
Chip Material
US Bridgelux
Power
150W
Current
2300MA
light color
White and Warm White
Luminous Intensity
100-110LM/W
CRI
>95
Color Temperature(K)
2700-6000K





Feature

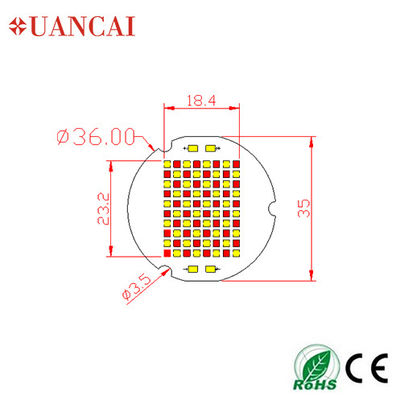

◆ Mechanical Dimensions : R36.0x2.7(mm)

◆ Package Structure:Aluminium Base Chip on Board

◆ CRI(Ra):Min.95

◆ Nominal CCT :3,000K,5,700K

◆ Chromaticity Range : 3-step MacAdam Ellipse

◆ RoHS compliant

◆ Better die arrangement for optics





Product Nomenclature





XCT 36 29 - H 10 08 - A 30/57 95 - A 3 3



[1][2][3] [4][5][6] [7][8][9] [10][11][12]

[1]:Company adjustable color

[2]:Product Size

[3]:Luminescent surface

[4]:Optical effect level

[5]:Number of LED chips in Series LED

[6]:Number of LED chips in parallel LED

[7]:Color category

[8]:Nominal CCT

[9]:Color index

[10]:Light range

[11]:Chromaticity Range

[12]:Type of substrate





[7]:A:Energy Star standard color temperature color ;B:Customized color ;C:Special colors(pork lamps, bread lamps, Redwood lamps, vegetable lamps, fruit lamps, seafood lamps, etc..); [12]:1:Mirror aluminum substrate ;2:Copper substrate ;3:Flid-substrate;4:Ceramic substrate ;5:Other substrates .







Electro Optical Characteristics





Product Code



Nominal CCT

CRI(Ra) Luminous Flux(lm) Efficacy ( lm/W )



Forward Current (mA)

Voltage (V)
    Ra R9
    Min Min Min. Typ. Typ.   Min. Typ. Max.

XCT3629-H1008

-A30/5795-A33

3000K 95 85 5800 5850 75-80 2500 30.5 31.0 31.5
  5700K 95 90 7400 7450 95-100 2500 30.5 31.0 31.5















Company Information

Tunable Csp Led Chips 0

Tunable Csp Led Chips 1

Company introduction

Shenzhen XuanCai Electronic Co.LTD was founded in 2007.Shenzhen special economic zone of China.Xuancai electronic is a professional engaged in COB light source packaging,development and production enterprises.Company is a design and development,production,sales,after-sales service as one of the one-stop professional developers and manufacturers.We are hold customer tailored service concept to meet the different needs of customers
company management idea:
1.to create wealth for customers
2.to create the future for the staff
3.for the enterprise to create profits
4.to create value for society

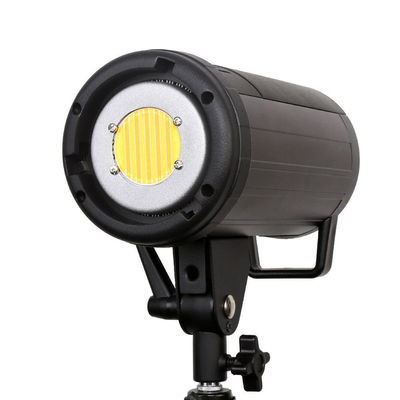

Applications





Tunable Csp Led Chips 2Tunable Csp Led Chips 3

















Certifications



Tunable Csp Led Chips 4



Trade Show



Tunable Csp Led Chips 5



Tunable Csp Led Chips 6



FAQ





Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than



Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available



Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.



Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.



Q6: Do you offer guarantee for the products?

A: Yes, we offer 2-3years warranty to our products.



Q7: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
