Product Details:
|
| Product Name: | RGB Flexible COB LED Strip | Power: | R15W+ G10W+ B10W |
|---|---|---|---|
| Voltage: | DC24V | CRI: | 90 |
| Color Temperature: | RED/BLUE/GREEN | Warranty: | 3 Years |
| Life Span: | 50000 Hours | Certificate: | CE ROHS LM-80 |
| LED Quantity: | 576LEDs/M | Application: | KTV/Commercial Light/Shopping Mall Light |
| Wavelength: | 520-525NM/ 620-625NM/ 460-465NM | ||
| High Light: | battery powered led light strips,RGB led light strips,led strip with remote |
||
RGB Flexible Colorful Soft Light Strip R15W+G10W+B10W with Remote Control For Home Kitchen Bed Room Decoration
Product Description
①Pure color: with the advantages of LED luminous components, pure light color/soft/no dazzle light.
②Flexibility: using very soft FPC substrate, can be bent greatly, easy to form, suitable for all kinds of decoration and lighting.
③Low heat: luminous components are LED chips. The power of a single LED chip is generally less than 0.03w, and the heat of a single LED chip is very low.
④Energy saving: compared with traditional lighting and decoration, the power is reduced several times, and the lighting effect is greatly enhanced.
⑤Environmental protection: no matter LED light source or FPC base material, all accord to ROHS standard.
⑥Safety: the led light bar uses the low voltage dc 12/24v power supply voltage.
⑦Easy to install, LED light bar with clamp, trough, iron net, etc can be installed in all kinds ofbearing surface, in addition, due to soft and thin, also can use the double-sided adhesive to realize the function of fixed, no need professional installation.
⑧Long service life: the normal service life of LED soft light bar is 50,000-100,000 hours, which is several times of the life of traditional lamps.
2.Decoration of irregular design body (polygonal wall, water drop and ceiling groove design of hotel/nightclub /KTV etc.)
3.Home dark groove edge (door frame, bar, wine cabinet, wardrobe, TV cabinet...)
4.Car beauty (body,underside...)
Product characteristic parameters
| Compa ny abbrevi ation |
Product size (mm) |
Input v oltage (V) | Series- paralle l |
Half a meter powe (W) |
Half-meter shear group numbe |
Emitting color |
Domina nt Wavelen gth (nm) |
CRI |
Photosyn thetic efficiency level (lm/w) |
Packag e stand ard |
| XC | 12 | 24 | 0812 | P7 | J12 | 红光 | 620-625 | / | A | B2 |
|
(xuancai) |
500*12mm |
DC24V |
08-C 12-B |
7.5W |
12 |
RED |
620-625 |
/ |
35-40 |
(Blister box) |
| XC | 12 | 24 | 0812 | P5 | J12 | 绿光 | 520-525 | / | E | B2 |
|
(xuancai) |
500*12mm |
DC24V |
08-C 12-B |
5W |
12 |
GREEN |
520-525 |
/ |
130-140 |
(Blister box) |
| XC | 12 | 24 | 0812 | P5 | J12 | 蓝光 | 452-455 | / | A | B2 |
|
(xuancai) |
500*12mm |
DC24V |
08-C 12-B |
5W |
12 |
BLUE |
452-455 |
/ |
25-30 |
(Blister box) |
Reliability test standards
|
(A pilot project) |
(Number of test) |
(Test conditions) |
(Decision criteria) |
(Test Vequipment) |
| Cold and hot shock |
10pcs |
-40℃/30min -- 120℃/30min, one Cycle per hour, 100 cycles in total. |
1. No glue crack/dead light |
Cold and heat shock chamber |
| The normal temperature aging |
10pcs |
Ambient temperature 25±5℃, rated voltage /1000hr, 168H to test the photoelectric parameters once. |
1. Droop 10% or less 2. No glue crack/dead light |
Normal temperature aging block |
| High temperature and high humidity |
10pcs |
Ambient temperature 85±5℃, rated voltage /1000hr, 168H to test the photoelectric parameters once. |
1. Droop 10% or less 2. No glue crack/dead light |
High temperature and high humidity aging tank |

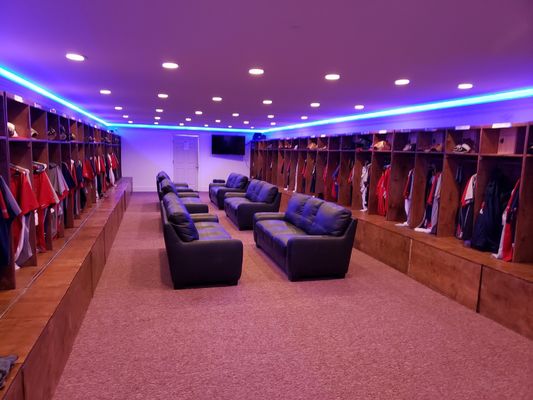

Application to Anywhere You Want to Use
Wonderful Colored Lighting for Room, Bedroom, Ceiling, Kitchen Cabinet, Cupboard, Bar etc.
The advantages of RGB FOB COB LED STRIP
1. UPGARDED LED TAPE ADHESTIVE
Compared with other LED strip lights that are not high quality, we use high -quality 3M adhesive with heat resistance, strong viscosity and integration.
2. DIY AND DIMMABLE
LED Strips are great for a variety of indoor/ interior uses including under-cabinet lighting in kitchens ambient accent lighting in bedrooms lighting or adding a backlighting source to display decorations or book shelves.
