Product Details:
|
| Size: | CL-13.5*13.5 / 7.5 Mm Led Cob Chip | Power: | 6W+6W |
|---|---|---|---|
| Voltage: | 36-39V | Current: | 150mA+150mA |
| CRI: | 90 | Lumens: | 110-120LM/W |
| Color Temperature: | 2700-6000K | Chip Brand: | US Bridgelux |
| Application: | Downlight/ Tracklight/ Spotlight | ||
| High Light: | CXB1304 6w Light Emitting Diode Chip,CXB1304 Light Emitting Diode Chip,CXB1304 chips on board led |
||
Features
Mechanical Dimensions: 13.35x13.35x1.9(mm)

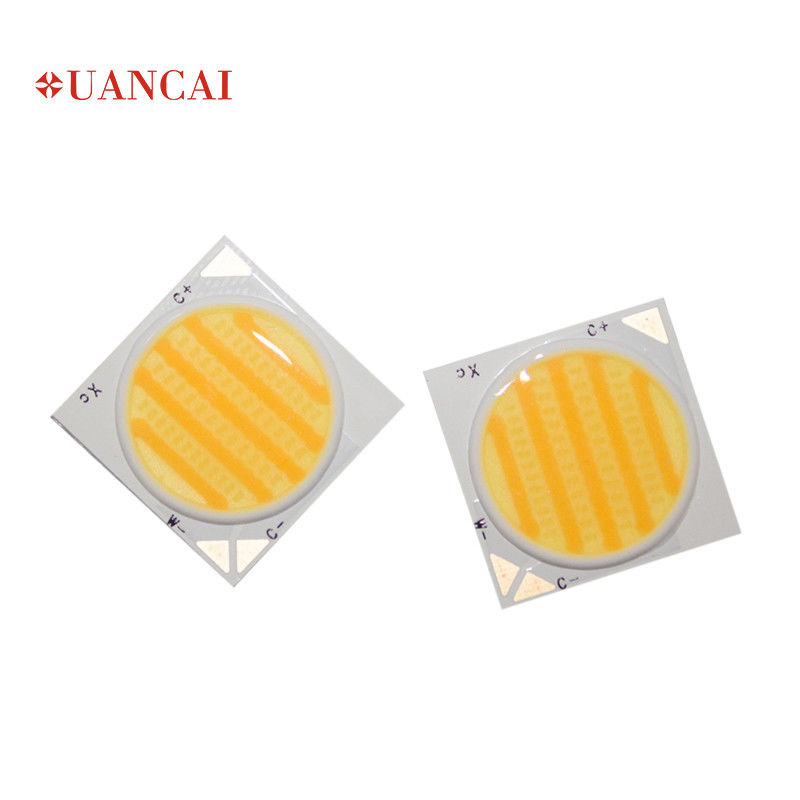

◆Package Structure:Aluminium Base Chip on Board
◆CRI(Ra):Min.90
◆Nominal CCT:2,700K,6,000K
◆Chromaticity Range: 3-step MacAdam Ellipse
◆RoHS compliant
◆Better die arrangement for optics
◆Wide range of luminous fluxand high efficacy
| Product name | CL-13.5*13.5 / 7.5 mm led cob chip |
| Power | 6w+6w |
| Current | 150mA+ 150mA |
| Voltage | 36-39v |
| Chip Brand | US Bridgelux |
| CRI | 90 |
| Luminous efficacy | 110-120LM/W |
| Color Temperature | 2700-6000K |
Electro Optical Characteristics
|
Product Code
|
Nominal CCT
|
CRI(Ra) | Luminous Flux(lm) | Efficacy ( lm/W ) |
Forward Current (mA) |
Voltage (V) |
||||
| Ra | R9 | |||||||||
| Min. | Min. | Min. | Typ. | Typ. | Min. | Typ. | Max. | |||
| XCT1308-M1202-A27/6090-C31 | 2700K | 90 | 50 | 500 | 530 | 95-100 | 150 | 36 | 36.5 | 37 |
| 6000K | 90 | 50 | 600 | 620 | 110-115 | 150 | 36 | 36.5 | 37 | |
SHENZHEN XUANCAI ELECTRONIC Co.,Ltd is a comprehensive LED lighting company, which is integrating LED light source packaging, optical design, and development , headquartered in Shenzhen, China, with more than 10 years experience in packaging high-end LEDS. Our company have the most advanced COB packaging production line, rich COB product line, color temperature range from 1700K-20000K, color rendering index RA70, RA80, RA90, RA95, RA98, etc. Power can range from 3W-500W single COB light source, double color temperature dimming system, etc., can meet the light source requirements of different customers in different occasions, provide customers with personalized design, customization, also provide customers with better visual effects.
SHENZHEN XUANCAI ELECTRONIC Co.,Ltd is a comprehensive LED lighting company, which is integrating LED light source packaging, optical design, and development , headquartered in Shenzhen, China, with more than 10 years experience in packaging high-end LEDS. Our company have the most advanced COB packaging production line, rich COB product line, color temperature range from 1700K-20000K, color rendering index RA70, RA80, RA90, RA95, RA98, etc. Power can range from 3W-500W single COB light source, double color temperature dimming system, etc., can meet the light source requirements of different customers in different occasions, provide customers with personalized design, customization, also provide customers with better visual effects.
