Product Details:
|
| Product Name: | XC-13.5*13.5/11 Dimmable Led Cob Chip | Watt: | 12w |
|---|---|---|---|
| Current: | 300mA | Voltage: | 36-39v |
| CRI: | 80 | Lumens: | 110-120lm/W |
| Color Temperature: | 2700-6500k | Warranty: | 3 Years |
| Life Span: | 50000 Hours | Certificate: | CE ROHS |
| Working Temperature(℃): | -20 - 50 | ||
| High Light: | CLU028 Citizen Dimmable Led chip,CLU028 CRI80 Dimmable Led chip,CLU028 Citizen 12 Watt Cob Led |
||

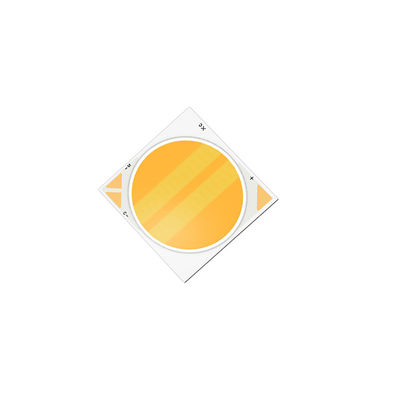

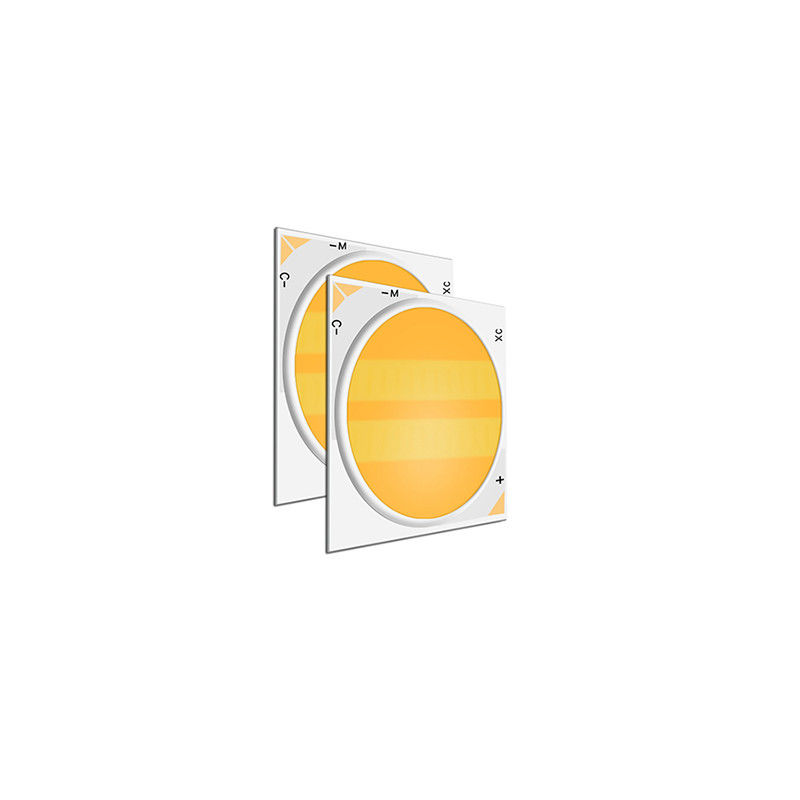

CLU028 Citizen Size XL-13.5*13.5 /11 12W Dimmable Led chip CRI>80 120-130lm/w CCT Tunable with CE ROHS
Feature

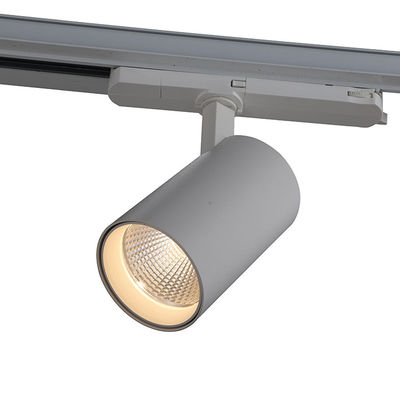

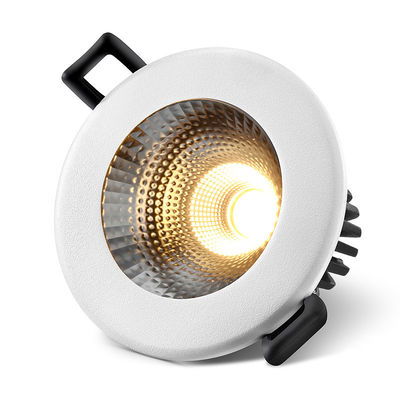

COB Dual- Color temperature series XUANCAI dimming light source, CSP Chip plus powder technology, adjustable dimming light source, CCT adjustable dimming and warm dimming light source is suitable for hotel retail and residential directional lighting. It has good luminescent effect and uniform spot
Specification
| Product Name | XC-TN12W 13.5*13.5/11 |
| Power | 12w |
| Current | 300mA |
| Voltage | 36-39v |
| CRI | 80 |
| Color Temperature | 2700-6000k |
| Lumens | 110-120lm/W |
Product Nomenclature
XCT 14 11-H 12 02-B 27/60 80 - B 3 3

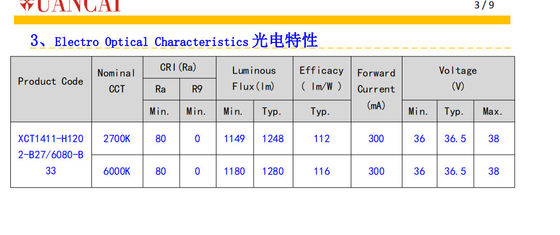

Electro Optical Characteristics
|
Product Code |
Nominal CCT | CRI(Ra) | Luminous Flux(lm) | Efficacy ( lm/W ) | Forward Current (mA) | Voltage (V) | ||||
| Ra | R9 | |||||||||
| Min. | Min. | Min. | Typ. | Typ. | Min. | Typ. | Max. | |||
|
XCT1411-H120 2-B27/6080-B 33 |
2700K | 80 | 0 | 1149 | 1248 | 112 | 300 | 36 | 36.5 | 38 |
| 6000K | 80 | 0 | 1180 | 1280 | 116 | 300 | 36 | 36.5 | 38 | |
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
A: Low MOQ, 1pc for sample checking is available
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
A: Yes, we offer 2-5 years warranty to our products.
