Product Details:
|
Product Name: | XL-38*38/35MM LED COB CHIP | Size: | 38*38/35MM |
---|---|---|---|
Power: | 100W | Current: | 1800mA |
Voltage: | 58-62V | Color: | White/ Red/ Blue/ Green/ Yellow/ Purple |
CRI: | 80 | Chip Brand: | Bridgelux Chip |
Certificate: | CE ROHS LM-80 | Application: | Train Light/ Drone Light |
Warranty: | 3 Years | Spanlife: | 50,000 Hours |
High Light: | Citizen Clu058 High Lumen LED Chip,Clu058 150W High Lumen LED Chip,Clu058 100 Watt Cob Led |

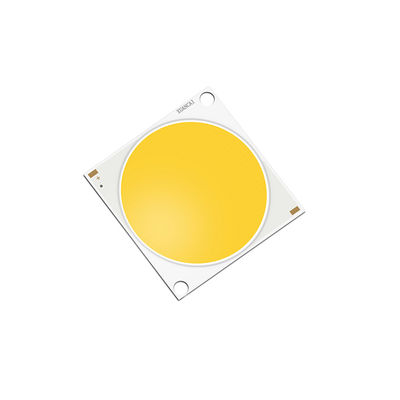

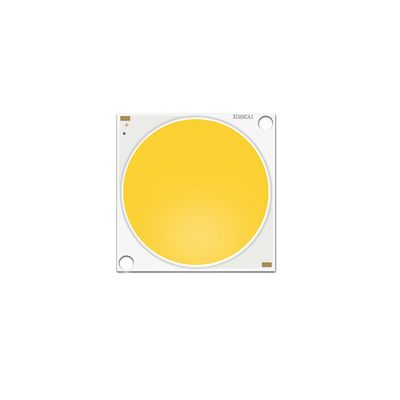

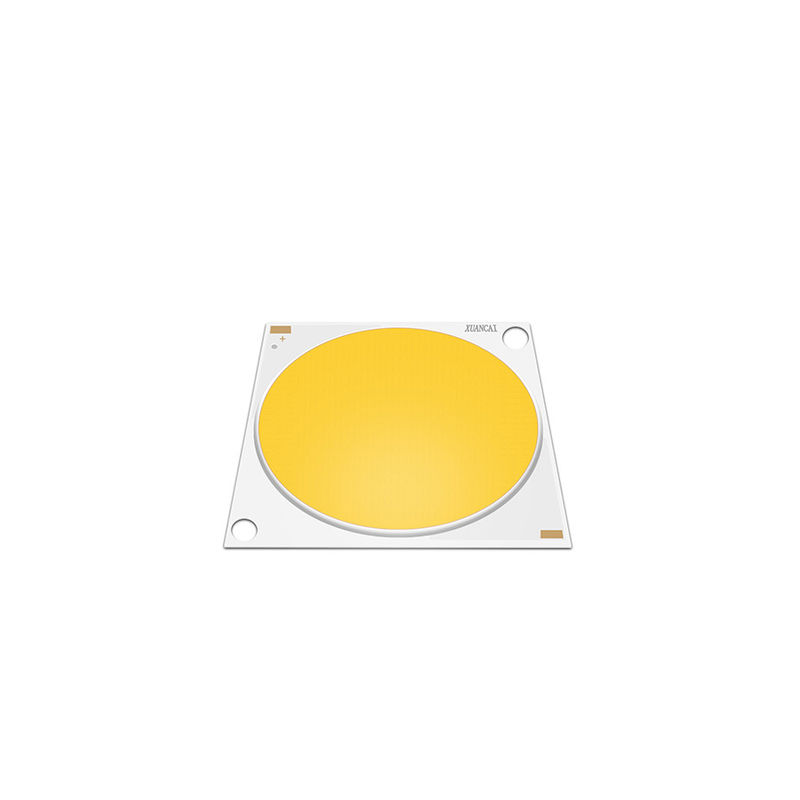

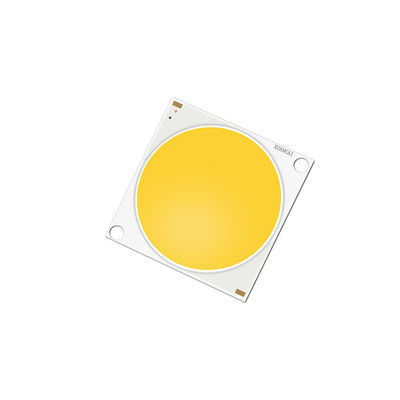

High Lumens Efficacy 160-170LM/W Citizen Clu058 Size 100W 150W 3000K LED COB Chip Module For Train Light/ Drone Light
Features:
1. Using standrad CRI index to design color points of light
2. Using thermoelectric separation of substrate. The heat dissipating performance is good. Thermal resistance<2.5
3. Small size of the COB to achieve high power efficacy. Easy to use for customers.
4. The reliability is further improved, and double lumens output 160-170LM/W can be achieve more than the same size.
Product Description
Features
◆ Mechanical Dimensions : 38*38*1.7(mm)
◆ Package Structure : Mirror Aluminium Base Chip on Board
◆ CRI(Ra) :Min.80,Min90, Min95
◆ Nominal CCT :2000K, 2700K, 3000K, 3500K, 4000K, 5000K, 6000K, 6500K, 7000K
◆ Chromaticity Range : 3-step MacAdam Ellipse/ 2-step MacAdam Ellipse/ 1-step MacAdam Ellipse
◆ RoHS compliant
◆ Better die arrangement for optics
◆ Wide range of luminous fluxand high efficacy
Dimensions
Electro Optical Characteristics
Product Code | Nominal CCT | CRI(Ra) | Luminous Flux(lm) | Efficacy ( lm/W ) | Forward | Voltage | ||||
Ra | R9 | Current | (V) | |||||||
Min. | Min. | Min. | Typ. | Typ. | (mA) | Min. | Typ. | Max. | ||
38*38/35MM | 2700K | 80 | 0 | 14380 | 15137 | 140 | 1800 | 58 | 60 | 62 |
38*38/35MM | 3000K | 80 | 0 | 14980 | 15768 | 146 | 1800 | 58 | 60 | 62 |
38*38/35MM | 3500K | 80 | 0 | 15429 | 16241 | 150 | 1800 | 58 | 60 | 62 |
38*38/35MM | 4000K | 80 | 0 | 15579 | 16399 | 152 | 1800 | 58 | 60 | 62 |
38*38/35MM | 5000K | 80 | 0 | 15279 | 16083 | 149 | 1800 | 58 | 60 | 62 |
Parameter | Symbol | Rating |
Forward Current | IF | 2880mA |
Reverse Current | IR | 1mA |
Operating Temperature | TOPR | -30℃ To +75℃ |
Storage Temperature | Tst | -30℃ To +75℃ |
Case Temperature | Tc | 85℃ |
Junction Temperature | TJ | 125℃ |
Soldering Temperature | TSOL | 350℃± 10℃ For 5 Seconds |
ESD Sensitivity | ESD | 2000V HBM |
Reliability Test
No. | Test Item | Test Condition | Test Cycle |
1 |
Continuous Operation Test |
Tc=85℃ IF=1800mA |
1000H |
2 |
Low/High Temperature Storage Test |
-40℃/30min~ +100℃/30min |
100 Cycles |
3 |
High Temperature Storage Test |
Ta=100℃ | 1000H |
4 |
Low Temperature Storage Test |
Ta=-40℃ | 1000H |
Application
Customers feedback
1. These are much better when used as under cabinet lighting than the standard chip style. Especially with reflective countertops. It's much more uniform and clean looking in the reflection. I install many strips through my electrical business. These were very great.
2. My customer is so happy with this lighting. The leds are bright and dimmable and a great white shade., not blue or amber. Most importantly they are a solid light, no dots. Looks very high end. This is the only led strip lighting I will install from now on.
3. I have used a ton of other products from skye and this is by far my favorite. It looks awesome without all the individual diodes. I used a 24v transformer and made sure the wattage was rated higher that the 3w per ft I planned to use. These bend much tighter and are more flexible than other brands if used as well. I combine these with aluminum channels I buy from amazon to make them look like a fixture, including inside and outside corners.
Awesome light
4. These lights are excellent! Very well made and stick very well. The look behind my tv is freaking awesome! I cant tell you how much better my living room looks now! Definitely a great choice, will buy more!
5. I normally don't write reports but I was surprised for good about this product. Unbelieved brightness. Consider using a dimmer to control the bright. For sure I will buy a few more for my home project.
