Product Details:
|
Product Name: | XC-19*19/17 Dimmable Led Cob Chip | Watt: | 24w |
---|---|---|---|
Current: | 600mA | Voltage: | 36-39v |
CRI: | 80 | Lumens: | 100-120lm/W |
Color Temperature: | 2700-5000k | Warranty: | 3 Years |
Certificate: | CE ROHS LM-80 | ||
High Light: | 120lm W 5000k Cob Led Dimmer,120lm W Cob Led Dimmer,5000k Light Emitting Diode Chip |

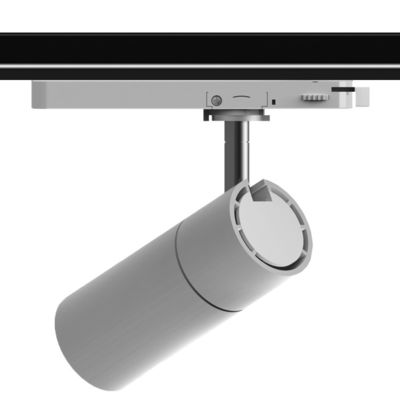

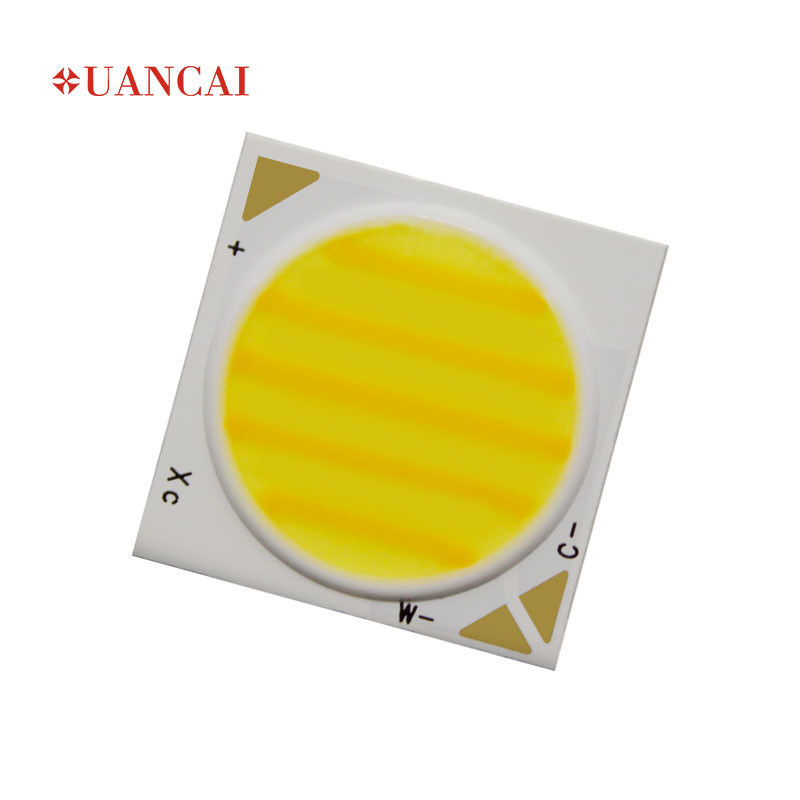

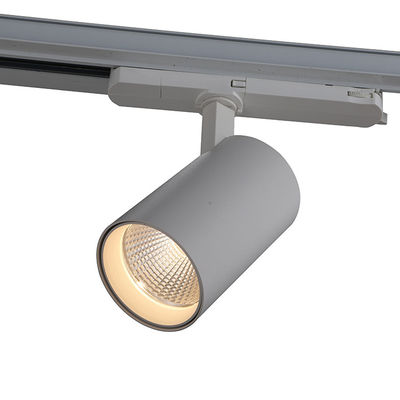

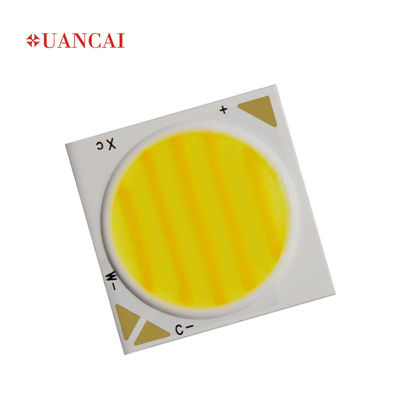

Double color Dimmable CLU038 Citizen Same Size XL-19*19/17 24W Led cob Chip US Bridgelux Used for Commercial Light
Specification
Product Name | XC-TN19*19/17 Dimmable led cob chip |
Power | 24w |
Current | 600mA |
Voltage | 36-39v |
CRI | 80 |
Color Temperature | 2700-5000k |
Lumens | 100-120lm/W |

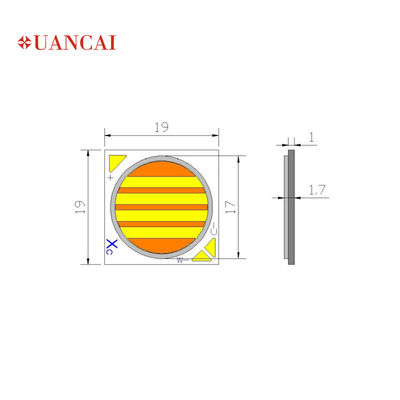

◆Mechanical Dimensions: 19.0x19.0x1.7(mm)
◆Package Structure:Aluminium Base Chip on Board
◆CRI(Ra):Min.90
◆Nominal CCT:2,700K,6,000K
◆Chromaticity Range: 3-step MacAdam Ellipse
◆RoHS compliant
◆Better die arrangement for optics
◆Wide range of luminous fluxand high efficacy
XCT 19 17 - M 12 09 - A 27/60 90 - D 3 1
[1][2][3] [4][5][6] [7][8][9] [10][11][12]
[1]:Company adjustable color
[2]:Product Size
[3]:Luminescent surface
[4]:Optical effect level
[5]:Number of LED chips in Series
[6]:Number of LED chips in parallel
[7]:Color category
[8]:Nominal CCT
[9]:Color index
[10]:Light range
[11]:Chromaticity Range
[12]:Type of substrate
No. | Test Item | Test Condition | Test Cycle |
1 | Continuous Operation Test |
Tc=85℃ IF=600mA |
1000H |
2 | Low/High Temperature Storage Test |
-40℃/30min~ +100℃/30min |
100 Cycles |
3 | High Temperature Storage Test | Ta=100℃ | 1000H |
4 | Low Temperature Storage Test | Ta=-40℃ | 1000H |
5 | Moisture-proof Test | Tc=60℃ ,95%RH | 1000H |
