Product Details:
|
| Model: | Tunable Flexible Led Cob Strip | Wattas: | 10W+10W |
|---|---|---|---|
| Voltage: | DC24V | CRI: | >90 |
| Color Temperature: | 2700+6500K | LED Qty(LEDs/M): | 512LEDs/576LEDs |

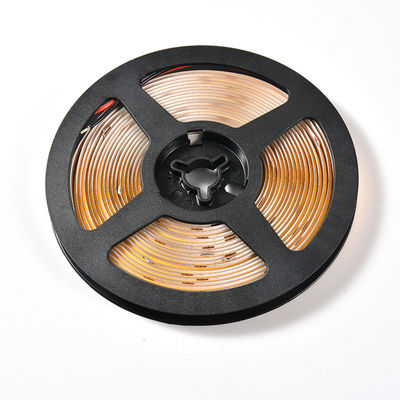

| Packaging Details: | 5Meter/Roll | Storage Temperature: | -40...+85 |
| Working Temperature: | -20...+45 | Certification: | CE ROHS LM-80 |
| Warranty: | 3 Years Warranty | Spanlife: | 50,000Hours |
| IP Rating: | IP20/ IP67 | PCB Width: | 10MM/12MM |
| High Light: | Tunable Cob Led Strip,12MM Cob Led Strip,12MM 6500k led strip |
||

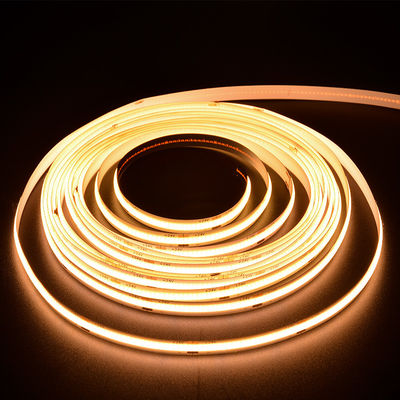

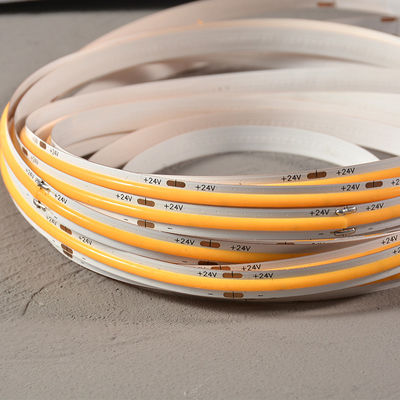

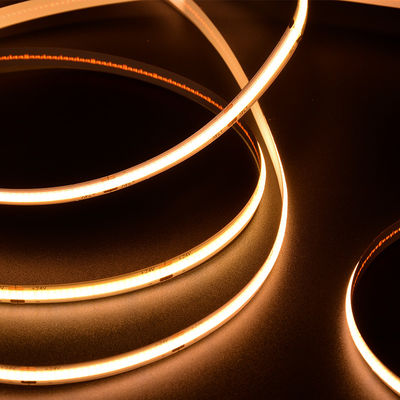

Tunable Cob Led Strip Lights 10MM/ 12MM DC24V CRI: 90 2700+6500K 10W Flexible Soft Light Strip
Product Description
Product characteristic parameters
| Company abbrevi ation |
Product si ze (mm) |
Input v oltage (V) | Series- paralle l |
Half a meter powe (W) |
Half-meter shear group numbe |
Emitting color | CRI |
Photosyn thetic efficiency level (lm/w) |
Packag e stand ard | Color t oleran ce |
| XC | 12 | 24 | 0836 | P10 | J18 | 27 | 90 | B | B2 | S3 |
|
(xuancai) |
500*12mm |
DC24V |
08-C 36-B |
10W |
18 |
2700K |
＞90 |
100-110 |
(Blister box) |
≤3 |
| XC | 12 | 24 | 0836 | P10 | J18 | 65 | 90 | C | B2 | S3 |
|
(xuancai) |
500*12mm |
DC24V |
08-C 36-B |
10W |
18 |
6500K |
＞90 |
110-120 |
(Blister box) |
≤3 |
Reliability test standards
|
(A pilot project) |
(Number of test) |
(Test conditions) |
(Decision criteria) |
(Test Vequipment) |
| Cold and hot shock |
10pcs |
-40℃/30min -- 120℃/30min, one Cycle per hour, 100 cycles in total. |
No glue crack/dead light |
Cold and heat shock chamber |
| The normal temperature aging |
10pcs |
Ambient temperature 25±5℃, rated voltage /1000hr, 168H to test the photoelectric parameters once. |
1. Droop 10% or less 2.No glue crack/dead light |
Normal temperature aging block |
| High temperature and high humidity |
10pcs |
Ambient temperature 85±5℃, rated voltage /1000hr, 168H to test the photoelectric parameters once. |
1. Droop 10% or less 2.No glue crack/dead light |
High temperature and high humidity aging tank |
Application
