Product Details:
|
| Product Name: | Photography And Camera CSP LED COB CHIP | Power: | 150W |
|---|---|---|---|
| Voltage: | 28-30V | CRI: | 95+ |
| Luminous Efficacy: | 110-120LM/W | CCT: | 3200K/5600K |
| Warranty: | 3 Years | Life Span: | 50000 Hours |
| Certificate: | CE ROHS LM-80 | Size: | 36/29MM |
| Application: | Video Recording Wedding Outdoor Shooting | Working Temperature(℃)gth: | -65 - 80 |
| High Light: | 5700K Camera Light Led Cob,CRI96 Camera Light Led Cob,5700K CRI96 200 Watt Led Chip |
||

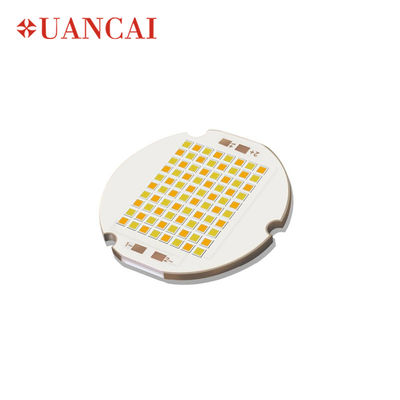

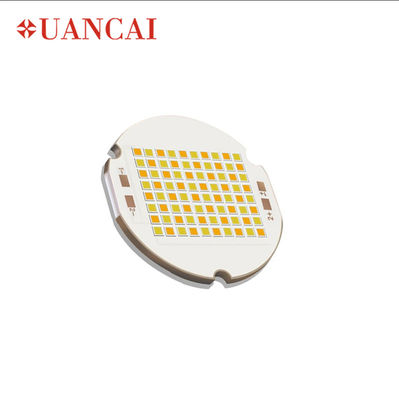

CRI>96 5700K/3200K 100W 200W Studio Video Light/ Film Shooting CSP LED COB Chip Best Quality Bridgelux Chip 36/29MM
Product Description

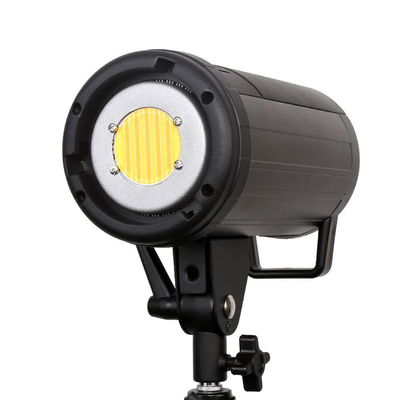

Our CSP LED COB CHIP offers high light brightness and color rendering index, presenting the objects authentically. It creates stable light resources and even illumination for outdoor photography, fluorescent lighting, children photography, as it is Continuous Output Lighting, no flash, protect baby's eyes. The CSP COB CHIP is used in all kinds of photography light, video light, shooting light... and a large LCD panel to display the brightness and temperature precisely.

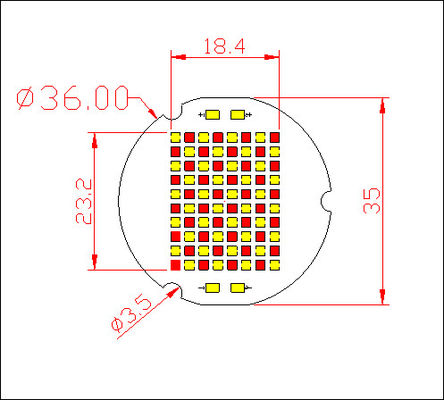

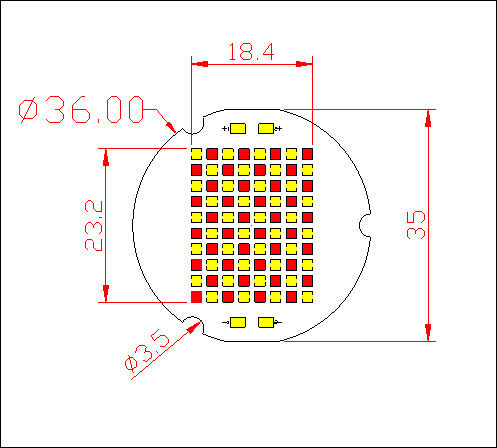

Mechanical Dimensions
Features
◆ Mechanical Dimensions : R36.0x2.7(mm)
◆ Package Structure :Aluminium Base Chip on Board
◆ CRI(Ra) :Min.95
◆ Nominal CCT :3,000K,5,700K
◆ Chromaticity Range : 3-step MacAdam Ellipse
◆ RoHS compliant
◆ Better die arrangement for optics
◆ Wide range of luminous fluxand high efficacy
Electro Optical Characteristics
|
Product Code |
Nominal CCT |
CRI (Ra) |
Luminous Flux(LM) |
Efficacy ( LM/W ) |
Forward Current (mA) |
Voltage (V) |
||||
| Ra | R9 | |||||||||
| Min | Min | Min. | Typ. | Typ. | Min. | Typ. | Max. | |||
|
XCT3629-H1008 -A30/5795-A33 |
3000K | 95 | 85 | 5800 | 5850 | 75-80 | 2500 | 30.5 | 31.0 | 31.5 |
| 5700K | 95 | 90 | 7400 | 7450 | 95-100 | 2500 | 30.5 | 31.0 | 31.5 | |
Absolute Maximum Ratings
| Parameter | Symbol | Rating |
| Forward Current | IF | 3600mA |
| Reverse Current | IR | 1mA |
| Operating Temperature | TOPR | -30℃ To +75℃ |
| Storage Temperature | Tst | -30℃ To +75℃ |
| Case Temperature | Tc | 85℃ |
| Junction Temperature | TJ | 125℃ |
| Soldering Temperature | TSOL | 350℃± 10℃ For 5 Seconds |
| ESD Sensitivity | ESD | 2000V HBM |
Features:
1: Bi-color LED Video Light
2: Extremely high color rendering CRI 96+ up to 98 near to Sunlight's.
3: No Purple-red or Green CCI=0.
4. Adjust the color temperature from 3200K to 5600K and adjust the brightness according to your needs.
5. Flicker-Free for high speed 120fps film shooting.
6. Super Soft Light.
7. Accurate rendering of Cyan & Red & White, complete and continuous visible spectrum, nearly zero distortion vivid reduction of original color, texture of lighting object.
8. No-Color-Temperature-Drifting & No-Light-Loss during long Working Lifetime up to 30000 hours-50000 hours.
9. Multiple & Versatile & Arbitrary Combination with various types of tube fixtures
