150W High CRI95 Dimmable CSP Photography Camera Light Led Cob

150W High CRI95 Dimmable  CSP Photography Camera Light Led Cob
150W High CRI95 Dimmable  CSP Photography Camera Light Led Cob 150W High CRI95 Dimmable  CSP Photography Camera Light Led Cob 150W High CRI95 Dimmable  CSP Photography Camera Light Led Cob 150W High CRI95 Dimmable  CSP Photography Camera Light Led Cob 150W High CRI95 Dimmable  CSP Photography Camera Light Led Cob 150W High CRI95 Dimmable  CSP Photography Camera Light Led Cob

Large Image :  150W High CRI95 Dimmable CSP Photography Camera Light Led Cob

Product Details:
Place of Origin: China
Brand Name: XUANCAI
Certification: CE ROHS
Model Number: XC-150W36/29 led cob chip
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: $31- $ 36.7
Packaging Details: Blister box packaging
Delivery Time: 3-5 days
Payment Terms: T/T, Western Union, Paypal , Alibaba trade assurance
Supply Ability: 10000M / Month

150W High CRI95 Dimmable CSP Photography Camera Light Led Cob

Description
Product Name: XC-TN150W36/29 Photography Lighting Watt: 150w
Current: 2300mA Voltage: 36-39v
CRI: >95 Lumens: 100-110lm/W
Life Span: 50000 Hours Application: Photography / Camera / Studio Lighting
Chip Brand: CSP Color Temperature: 2700-6500k
High Light:

CSP Photography Camera Light Led Cob

,

CSP Camera Light Led Cob

,

CSP Camera Chip Led 150w

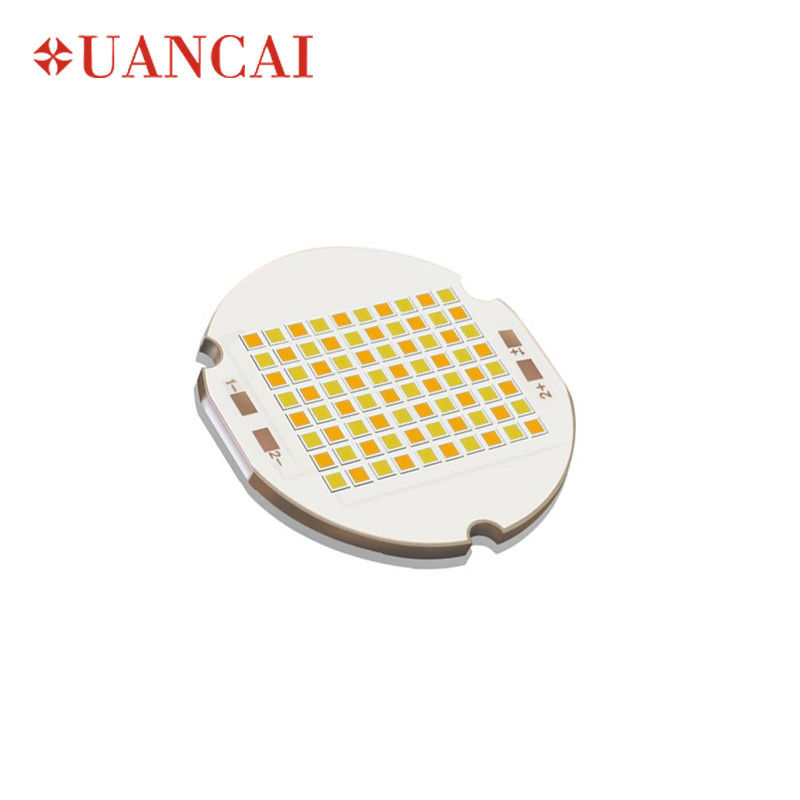

High quality high power 150W High CRI> 95 Dimmable led Cob chip with CSP chip for Photography & Studio Lighting



Feature



COB Dual- Color temperature series XUANCAI Dimming light source, CSP Chip plus powder technology, adjustable dimming light source, CCT adjustable dimming and warm dimming light source is suitable for hotel retail and residential directional lighting.





Product Information
Product Item
XC-TN150W36*36/29
Chip Material
CSP
Power
150W
Current
2300MA
light color
2700-6500K
Luminous Intensity
100-110LM/W
CRI
>95





Product Specification

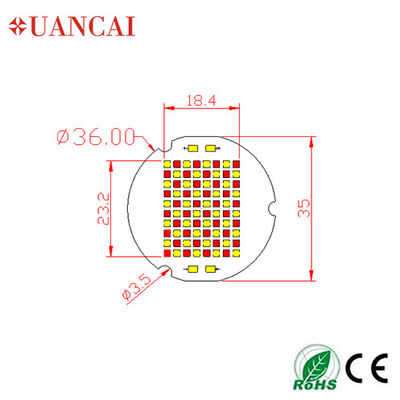

◆ Mechanical Dimensions : R36.0x2.7(mm)

◆ Package Structure :Aluminium Base Chip on Board

◆ CRI(Ra):Min.95

◆ Nominal CCT :3,000K,6,000K

◆ Chromaticity Range : 3-step MacAdam Ellipse

◆ RoHS compliant

◆ Better die arrangement for optics

◆ Wide range of luminous fluxand high efficacy





Product Nomenclature



XCT 36 29-H 10 08-C 30/60 95 - B 3 3



[1] [2][3][4][5][6][7] [8] [9] [10][11][12]

[1]:Company adjusttable color

[2]:Product Size

[3]:Luminescent surface

[4]:Optical effect level

[5]:Number of LED chips in Series

[6]:Number of LED chips in parallel

[7]:Package type

[8]:Nominal CCT

[9]:Color index

[10]:Light range

[11]:Chromaticity Range

[12]:Type of substrate





Electro Optical Characteristics







Product Code

Nominal CCT CRI(Ra) Luminous Flux(lm) Efficacy ( lm/W ) Forward Current (mA) Voltage (V)
    Ra R9
    Min. Min. Min. Typ. Typ.   Min. Typ. Max.

XCT3629-H100 8-C30/6080-B

33

3000K 95 90 3881 3960 100 1400 28 29.1 30
  6000K 95 85 4072 4151 102 1400 28 29.3 30









Company Information

150W High CRI95 Dimmable  CSP Photography Camera Light Led Cob 0

150W High CRI95 Dimmable  CSP Photography Camera Light Led Cob 1




Product Applications





150W High CRI95 Dimmable  CSP Photography Camera Light Led Cob 2

150W High CRI95 Dimmable  CSP Photography Camera Light Led Cob 3















Trade Show



150W High CRI95 Dimmable  CSP Photography Camera Light Led Cob 4



150W High CRI95 Dimmable  CSP Photography Camera Light Led Cob 5



FAQ





Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than



Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available



Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.



Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.



Q6: Do you offer guarantee for the products?

A: Yes, we offer 2-3years warranty to our products.



Q7: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
