|3535 660-665nm SMD LED Light
|Plant Growth Light
SMD3535 665nm LED Grow Light Chip,
SMD3535 LED Grow Light Chip,
SMD3535 665nm Smd Cob Led

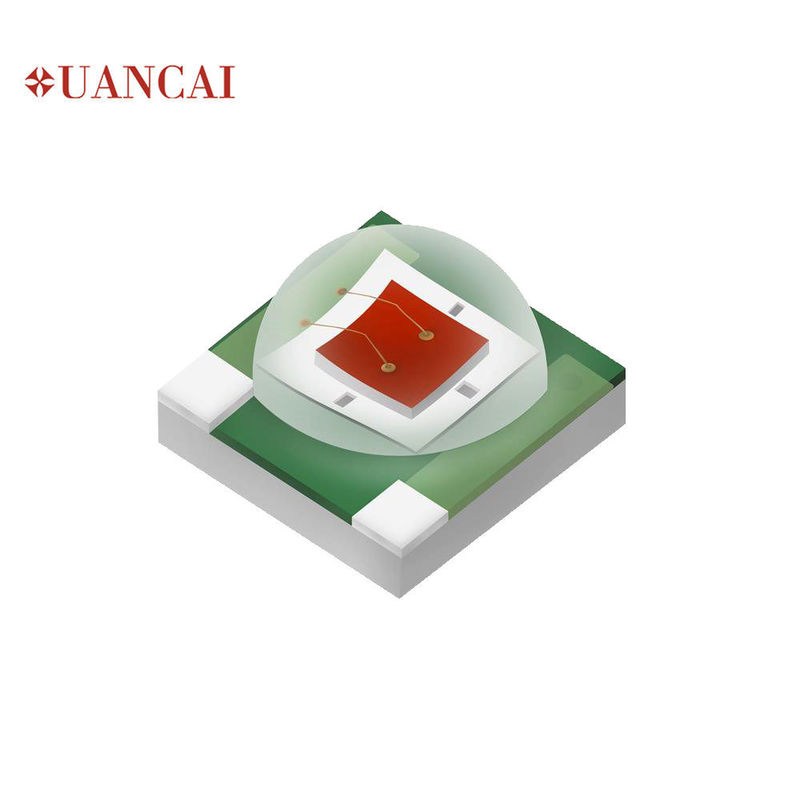

SMD 3535 Red light 660-665nm 1-3w Taiwan Epileds chip 45mil Pure Golden Wire Plant Grow Light

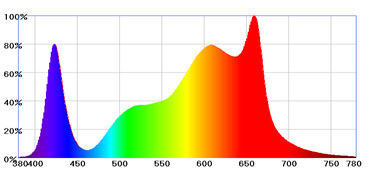

FULL SPECTRUM: 380-800nm wavelength full spectrum is suitable for all fruits, vegetables, hydroponic, flower,gardening,indoor plants at all stages.The wavelength of light can be fully absorbed.
ENERGY SAVING AND HIGH EFFICIENCY: you can buy lamp beads of different bands to assemble into plant lights of different wattage. It will speed up the growth for indoor plants with 3 times,it’s popular for greenhouse plants even in cold winter.
SAFE AND USER-FRIENDLY: 4000V thunder is resisted,it’s waterproof,anti-dropping,anti-explosion.Intelligent temperature system enables LED grow light work whether under high or cold temp.
To avoid moisture, we recommend storage conditions for the unopened LED +5 ~ +30℃
rela-tive humidity <60%. LED should be used within 168 Hrs. of opening the package. Please
make sure to dehumidify and vacuum pack the remaining/ unused LED. Dehumidifying condition:
+120℃±5℃ of 4Hrs. Effective age for the sealed led is one year.
2. Anti-static measures
Please take adequate measures to prevent electrostatic generation, such as wearing
electrostatic ring or anti-static fingerstall etc; any relative products like plant
equipment, machinery, carrier and transpor-tation units shall be connected to discharging
unit/ ground. The ESD sensitivity of this product is > 1000V(HBM), after assembly the final
lamp, please make sure to discharge Static Electricity by proper ESD equipment.
3. The soldering precautions
Soldering conditions: Reflow soldering is not recommended for this LED. If hand soldering,
set sol-dering iron temperature at 350℃ and soldering time not More than 5 seconds, after the
first soldering, make sure the substrate surface temperature returns to ambient temperature
before a second soldering. Please. make sure when soldering, there is no external force on the
soldering surface and silicon batardeau (such as pressure, friction or sharp metal nails, etc.),
to avoid gold wire deformation or dam-age and other abnormalities. If beyond recommended
conditions, we cannot guarantee the LED stability, please do the risk assessment first. During
assembly, please ensure that a good quality thermal paste is applied and distributed evenly over
the surface. While using thermal pad (Heat Sink), make sure LED is firmly tightened and there
is no gap between surfaces. In such heat-media products, through a pressure test of at least
Recommended temperature conditions for enhanced product life: Be sure to TS point (negative
pads) controlled below 85℃, COB recommendation colloid surface temperature control ≤150℃.
