6500K Chip Led 10w 12v

6500K Chip Led 10w 12v
6500K Chip Led 10w 12v 6500K Chip Led 10w 12v 6500K Chip Led 10w 12v 6500K Chip Led 10w 12v 6500K Chip Led 10w 12v 6500K Chip Led 10w 12v

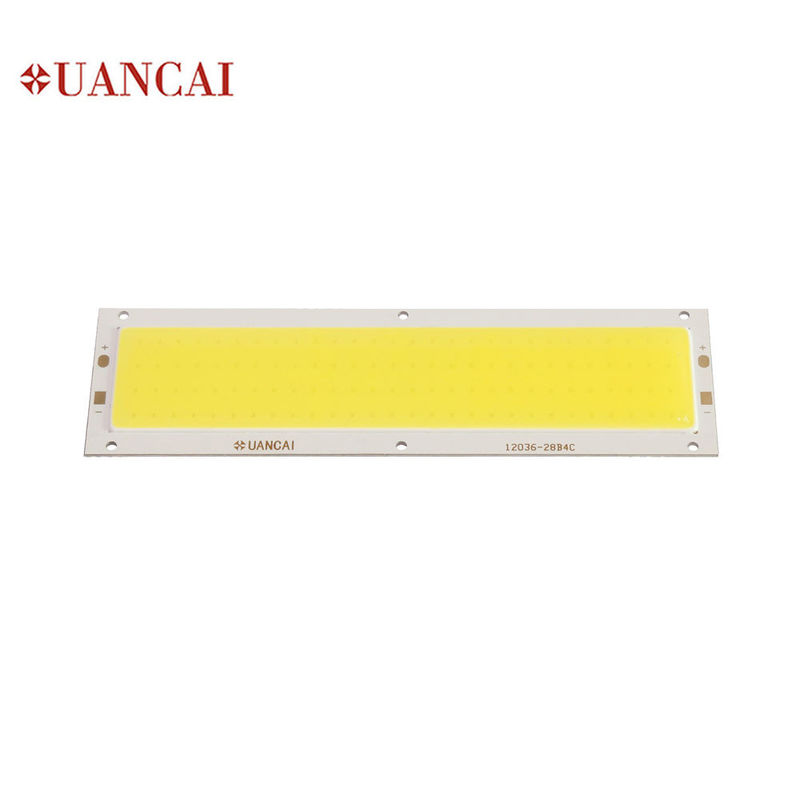

Large Image :  6500K Chip Led 10w 12v

Product Details:
Place of Origin: China
Brand Name: XUANCAI
Certification: CE ROHS LM-80
Model Number: XCP 10W COB 120*40MM
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: $1 -$ 1.8 /PCS
Packaging Details: Blister box packaging
Delivery Time: 3-5 days
Payment Terms: T/T, Western Union, Paypal , Alibaba trade assurance
Supply Ability: 100000M / Month

6500K Chip Led 10w 12v

Size: 120*40MM Power: 10W
Voltage: 12-14V CRI: 80
Lumens: 120-130lm/w Chip Brand: Sanan
Certificate: CE ROHS Warranty: 3 Years
Application: Car Light/ Camping Light Color: Warm White / Cool White
High Light:

6500K Chip Led 10w 12v


130lm Chip Led 10w 12v


130lm 10 Watt Cob Led

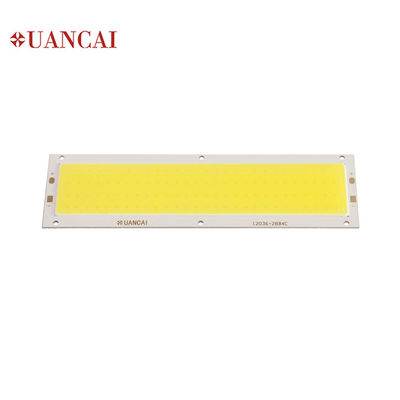

Long strip cob 120*40/F112*26  10w 12V cob led chip 6000-6500K 120--130lm/w used in Camping light






Product Information
Product Name
XC-120*40MM led cob chip
light color
3000K/ 4000k/ 6000K / Red/ Blue/ Green/ Yellow
Chip Material
3 Years
Luminous efficacy








Product Introduction


1-1 Features

◆ Mechanical Dimensions : 120 x 40 x1.7(mm)

◆ Package Structure :Aluminium Base Chip on Board

◆ CRI(Ra): Min.70/ Min.80/ Min.90

◆ Nominal CCT : 2700K/ 3000K/ 4000K/ 6000K

◆ Chromaticity Range : 3-step MacAdam Ellipse

◆ RoHS compliant

◆ Better die arrangement for optics

◆ Wide range of luminous flux and high efficacy

1-2 ,Applications

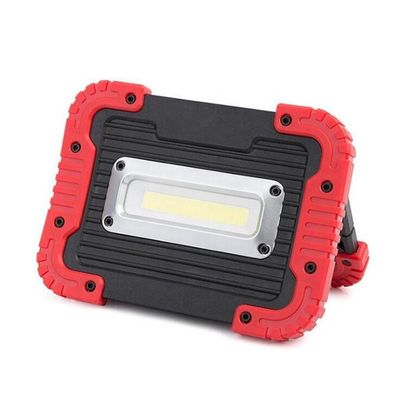

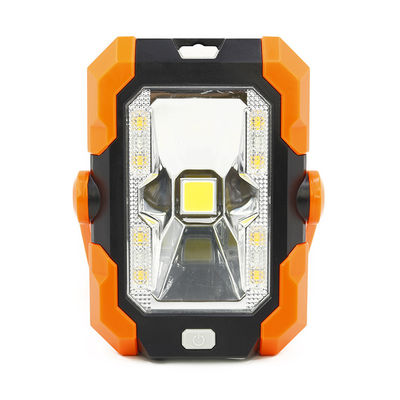

Car light/ Camping light










6500K Chip Led 10w 12v 0



6500K Chip Led 10w 12v 1






User Manual


1. Storage

To avoid moisture, we recommend storage conditions for the unopened LED +5 ~ +30℃ rela-tive humidity <60%. LED should be used within 168 Hrs. of opening the package. Please make sure to dehumidify and vacuum pack the remaining/ unused LED. Dehumidifying condition:
+120℃±5℃ of 4Hrs. Effective age for the sealed led is one year.


2. Anti-static measures

Please take adequate measures to prevent electrostatic generation, such as wearing electrostatic ring or anti-static fingerstall etc; any relative products like plant equipment, machinery, carrier and transpor-tation units shall be connected to discharging unit/ ground. The ESD sensitivity of this product is > 1000V(HBM), after assembly the final lamp, please make sure to discharge Static Electricity by proper ESD equipment.



3. Temperature control

Recommended temperature conditions for enhanced product life: Be sure to TS point (negative pads) controlled below 85℃, COB recommendation colloid surface temperature control ≤150℃.
