5W 12V Car LED Cob Panel

I'm Online Chat Now

5W 12V Car LED Cob Panel

5W 12V Car LED Cob Panel
5W 12V Car LED Cob Panel 5W 12V Car LED Cob Panel 5W 12V Car LED Cob Panel 5W 12V Car LED Cob Panel

Large Image :  5W 12V Car LED Cob Panel

Product Details:
Place of Origin: China
Brand Name: XUANCAI
Certification: CE ROHS LM-80
Model Number: XCP120*40MM cob Light bar
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: $0.8-$1.8/PCS
Packaging Details: Blister box packaging
Delivery Time: 3-5 days
Payment Terms: T/T, Western Union, Paypal , Alibaba trade assurance
Supply Ability: 100000PCS / Month

5W 12V Car LED Cob Panel

Product Name: XCP120*40MM Cob Light Bar Power: 10W
Voltage: 12V Lumens: 120-130LM/W
CRI: >80 Warranty: 3 Years
Life Span: 50000 Hours Certificate: CE ROHS LM-80
Application: Camping Light / Car Light Chip Brand: Bridgelux Chip/ Sanan
Color: Red/ Blue/ Green/ White
High Light:

Spotlight Cob Led Panel 12v


1200LM Cob Led Panel 12v


Led Chip 12v 10w

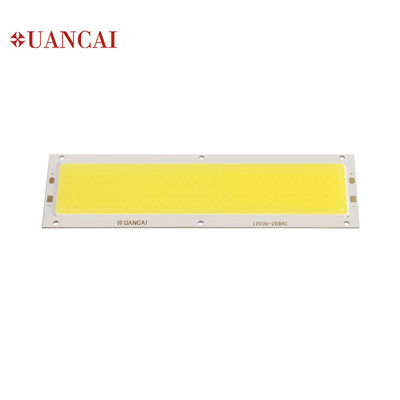

12V 10W 1200LM LED Panel Strip Light COB Chip Light Lamp Car Light Source DIY Spotlight Floor Light 120*40MM



This lamp bead is constant voltage, mainly used for the lighting of flashlights and car lights. Conveniently powered for hours with 3 AAA batteries or a single rechargeable battery. It is easy for use around the house, dog walking, or camping. It is compact enough to fit in your pocket, backpack, or purse allowing for easy storage and quick access. Suitable for use in rain, snow, or emergency situations.





Product Information
 XCP120*40MM cob Light bar
light color
  Red/ Blue/ Green/ Yellow/  White
Chip Brand
Bridgelux / Sanan
Warranty   3 Years
Luminous   120-130lm/W



Absolute Maximum Ratings


  • LEDs Type: Long strip cob chip for Flash light/ Car light
  • Size: XC-120*40MM
  • Wattage: 10W
  • Voltage:  12V
  • CRI: >80
  • Luminous efficacy: 120-130LM/W
  • Color Temperature: Red/ Blue/ Green/ White/ Warm White / Cool White
  • Operation temperature: -30℃-+75℃
  • Storage temperature: -30℃-+ 75℃
  • Case Temperature: 85℃
  • Junction Temperature: 125℃
  • Soldering Temperature: 350℃± 10℃ For 5 Seconds
  • ESD Sensitivity: 2000V HBM



Mechanical Dimensions


5W 12V Car LED Cob Panel 0






5W 12V Car LED Cob Panel 15W 12V Car LED Cob Panel 2




User Manuel

1. Storage

To avoid moisture, we recommend storage conditions for the unopened LED +5 ~ +30℃ rela-tive humidity <60%. LED should be used within 168 Hrs. of opening the package. Please make sure to dehumidify and vacuum pack the remaining/ unused LED. Dehumidifying condition:
+120℃±5℃ of 4Hrs. Effective age for the sealed led is one year.


2. The soldering precautions

Soldering conditions: Reflow soldering is not recommended for this LED. If hand soldering, set sol-dering iron temperature at 350℃ and soldering time not More than 5 seconds, after the first soldering, make sure the substrate surface temperature returns to ambient temperature before a second soldering. Please. make sure when soldering, there is no external force on the soldering surface and silicon batardeau (such as pressure, friction or sharp metal nails, etc.), to avoid gold wire deformation or dam-age and other abnormalities. If beyond recommended conditions, we cannot guarantee the LED stability, please do the risk assessment first. During assembly, please ensure that a good quality thermal paste is applied and distributed evenly over the surface. While using thermal pad (Heat Sink), make sure LED is firmly tightened and there is no gap between surfaces. In such heat-media products, through a pressure test of at least 500 volts.


3. Anti-static measures

Please take adequate measures to prevent electrostatic generation, such as wearing electrostatic ring or anti-static fingerstall etc; any relative products like plant equipment, machinery, carrier and transpor-tation units shall be connected to discharging unit/ ground. The ESD sensitivity of this product is > 1000V(HBM), after assembly the final lamp, please make sure to discharge Static Electricity by proper ESD equipment.



4. The drive control

Drive this product at constant current. Output current range specifications should be ac-cording to the operational and other conditions, as mentioned in data sheet. Before using a constant voltage source or altered specifications other than recommended, please consider risk factors.
