Product Details:
Place of Origin: China
Brand Name: XUANCAI
Certification: CE ROHS LM-80
Model Number: Plant growth led light
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: $0.1-$0.2/metre
Packaging Details: Blister box packaging
Delivery Time: 3-5 days
Payment Terms: T/T, Western Union, Paypal , Alibaba trade assurance
Supply Ability: 10000M / Month

460NM SMD 3535 Led Chips

Product Name: Plant Growth Led Light Power: 3W
Voltage: 3-3.2V Wavelenght: 460-465NM/ 470-475NM
Current: 350-600mA Beam Angle: 120
Warranty: 3 Years Life Span: 50000 Hours
Certificate: CE ROHS Working Temperature(℃): -20 - 50
Application: Plant Growth Lighting Color: Blue
High Light:

465nm SMD 3535 epileds led chips


3535 465nm Epileds Led Chips


3535 Cob Led Full Spectrum

3W 460-465nm Blue Led Spectrum 3535SMD LED Epileds Chip Quartz Glass UV SMD Used In Garden Light/Plant Growth lighting



Our 3535 SMD LED are the same size as XLamp XP-G2/XLamp-E2, there have different wavelengthes, such as white, 380-385NM, 400-405NM, 420-425NM, 440-445NM, 450-455NM, 460-465NM, 470-475NM, 500-505NM, 520-525NM, 620-625NM, 660-665NM, 740-745NM... ect.

  • Blue LED spectrum: can ensure that plants absorb more energy through chlorophyll synthesis, which leads to germination.
  • Red LED spectrum: helps to germinate effectively, flower and enhance photosynthesis, so as to obtain better results.
  • Mixed spectrum: The balanced spectrum of red and blue can optimize the growth stage of seeds and plants.


Product Description


Product Information


3W Plant growth lighting
Product name
3535 package SMD LED
Chip Material
Beam Angle



OpticalElectrical Characteristic: (TA=25)


  Parameter Symbol

Test Condition




  Forward Current












Reverse Current












Dominant Wavelength












  LED TA       IF=700mA     100     120     150      °C

Luminous Flux












Viewing Angle















Absolute Maximum Ratings:(TA=25) :(TC=25)


Parameter Symbol Maximum Rating Unit

Peak Forward Current





Forward Current


IF 700.00 mA

Reverse Voltage


VR 5.00 V

Power Dissipation


PD 3000.00 mW

Operating Temperature





Storage Temperature


Tstg -40~+85

Electrostatic Discharge


ESD 2000.00 V

Soldering Temperature


260℃ for 5 seconds



Lead soldering Temperature: 260℃ for 10 seconds





Product Brief

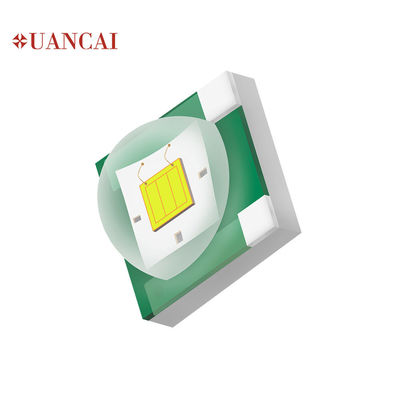

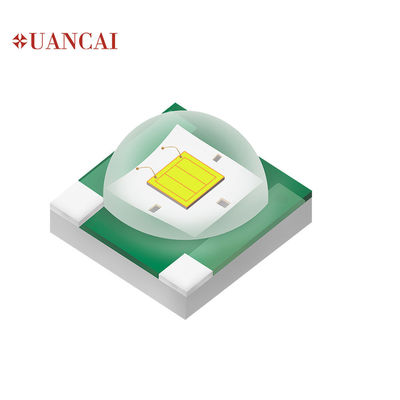

1. This white colored surface-mount LED size in standard package: 3.45*3.45mm

2. The L35 Series is designed for high flux output applications with high current operation capablity.

3. The L35 series uses the eutectic technology, with low thermal resistance and high reliablity



Features And Benefits

1. High lumen output and efficacy

2. Designed for high current operation

3. Low thermal resistance

4. High color quality with CRI min.80


Key Applications

1. Indoor lighting

2. Outdoor lighting

3. Automotive

4. Architectural lighting

5. Industrial lighting

6. Portable torch

7. Plant growth lighting



460NM SMD 3535 Led Chips 0460NM SMD 3535 Led Chips 1460NM SMD 3535 Led Chips 2

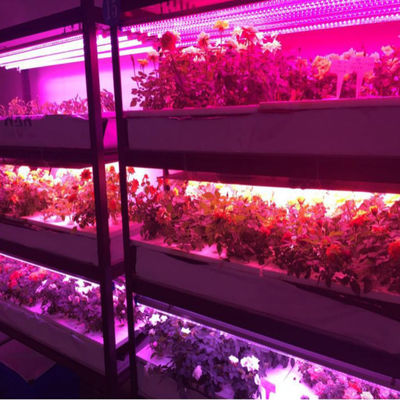

The Plant growth lighting is convenient for a number of potted landscape and indoor garden plants that include;

- A variety of flowering plants that include roses, chrysanthemum, peony, tulip and many others.

- All greens like tomatoes, chili, choy, herbs etc.

- All succulents including ball cactus, burros tail, dudleya, ball cactus, and others.


Related specifications

Plant growth lighting
Size Wavelength Power Voltage Current Beam Angle
3535 package 6000K/4000K/3000K 1-3W 3-3.2V 350-600mA 120º
380-385NM 1-3W 3.6V 350-600mA 120º
400-405NM 1-3W 3-3.2V 350-600mA 120º
420-425nm 1-3W 3-3.2V 350-600mA 120º
440-445nm 1-3W 3-3.2V 350-600mA 120º
450-455nm 1-3W 3-3.2V 350-600mA 120º
460-465nm 1-3W 3-3.2V 350-600mA 120º
470-475nm 1-3W 3-3.2V 350-600mA 120º
500-505nm 1-3W 3-3.2V 350-600mA 120º
520-525nm 1-3W 3-3.2V 350-600mA 120º
620-625nm 1-3W 3-3.2V 350-600mA 120º
660-665nm 1-3W 3-3.2V 350-600mA 120º
740-745nm 1-3W 3-3.2V 350-600mA 120º



Trade Show

460NM SMD 3535 Led Chips 3




460NM SMD 3535 Led Chips 4




Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than


Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available


Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.


Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.


Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.


Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.


Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%. Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
